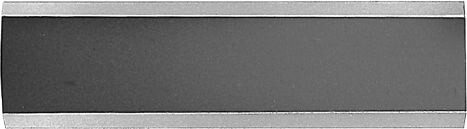

181511 - Turnover Knives HW with 2 cutting edges - Leitz
Product

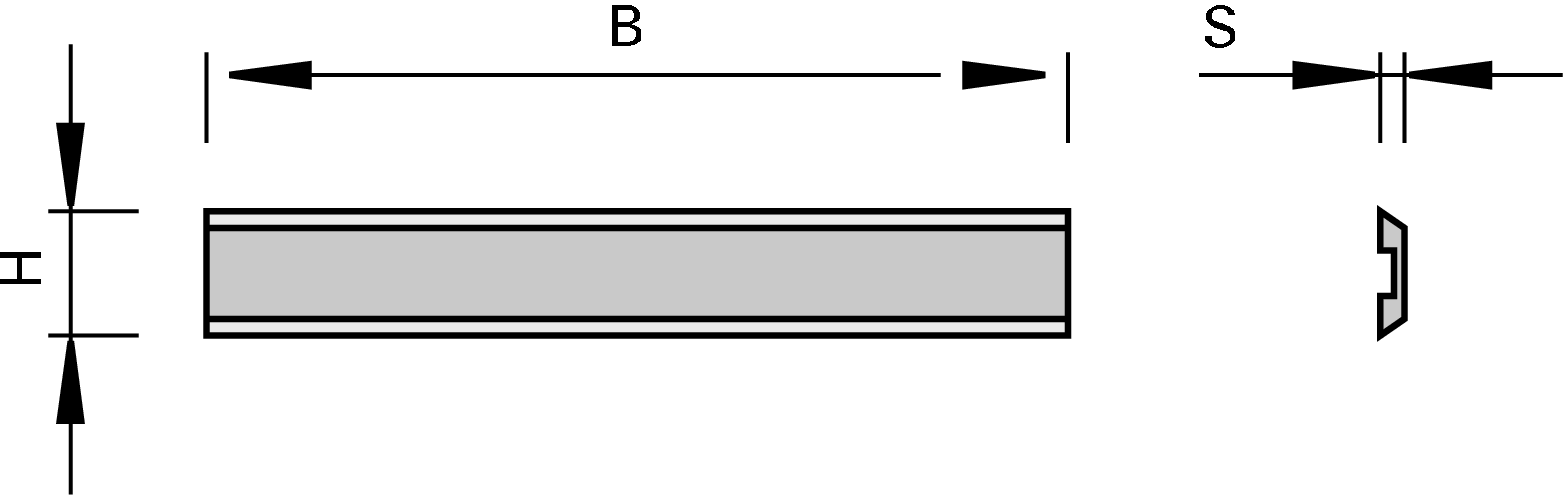

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- for use in Leitz cutterheads
Design
- cutting material: HW HL Board 05 for wood-based panels, plastics and hard woods
Advantages
Notes
- packing unit: 10 pieces
| Feature | Value | |
|---|---|---|
| B = Width | 80 [mm] | |
| H = Height | 8 [mm] | |
| S = Thickness | 1.5 [mm] | |
| LEUCODUR = Cutting material | Hl Board 05 | |
| PU = Packing unit | 10 [pc.] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
