160618 - Turnover Knives HW with 2 cutting edges and chamfer - HOLZ-HER

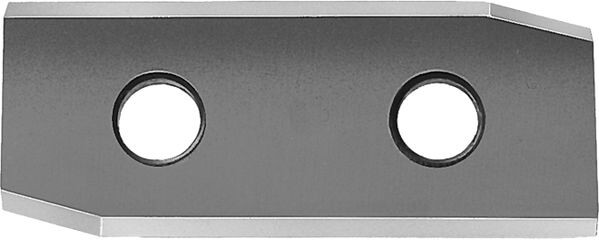

Product

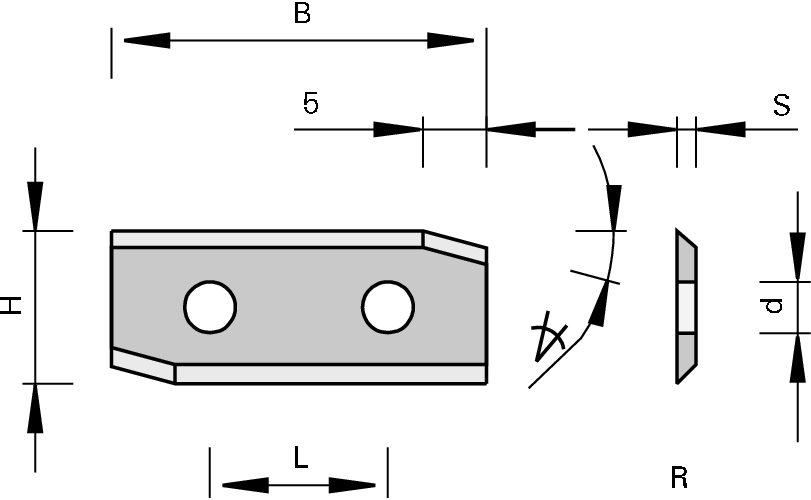

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- machines HOLZ-HER
- for use in edge banding / jointing cutterheads
Design
- grinding angle 55 degrees
- cutting material: HW
- HL Board 06 for wood-based panels, plastics and hard woods
Advantages
Notes
- packing unit: 10 pieces
| Feature | Value | |
|---|---|---|
| Dimension | 29,5x12x1,5 [mm] | |
| Chamfer∡ = Chamfer angle | 15 [°] | |
| B = Width | 29,5 [mm] | |
| H = Height | 12 [mm] | |
| S = Thickness | 1.5 [mm] | |
| Ø d = Bore diameter | 4,0 [mm] | |
| L = Bore distance | 14 [mm] | |
| Type = Type | 1 | |
| Wedge∡ = Wedge angle | 55 [°] | |
| LEUCODUR = Cutting material | HL Board 06 | |
| PU = Packing unit | 10 [pc.] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
