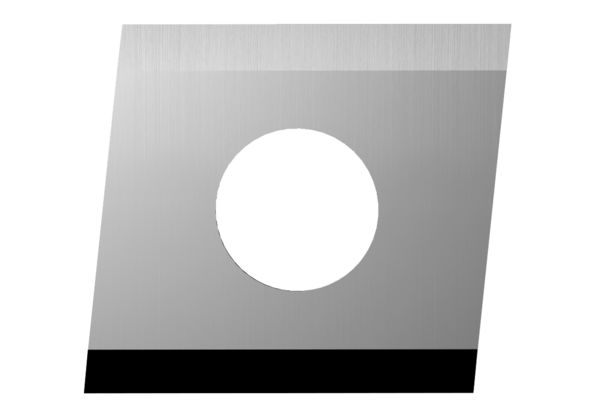

186196 - Turnover Knives HW with 2 cutting edges, edge bevel - Brandt, Ott
Product

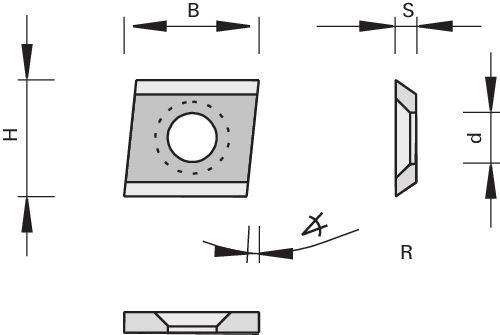

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- machines Brandt, Ott
- Brandt: for use in grooving cutterheads and prism cutterheads or as flat scraper
- Ott: for the use as flat scraper
Design
- grinding angle 55 degrees
- cutting material: HW
- HL Board 06 for hard and soft woods
Advantages
Notes
- packing unit: 10 pieces
| Feature | Value | |
|---|---|---|
| Dimension | 15x14,3x2,5 [mm] | |
| B = Width | 15 [mm] | |
| H = Height | 14.3 [mm] | |
| S = Thickness | 2.5 [mm] | |
| Ø d = Bore diameter | 6,3 [mm] | |
| Wedge∡ = Wedge angle | 55 [°] | |
| Clearance ∡ 1 = Clearance angle 1 | 6 [°] | |
| LEUCODUR = Cutting material | HL Board 06 | |
| PU = Packing unit | 10 [pc.] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
