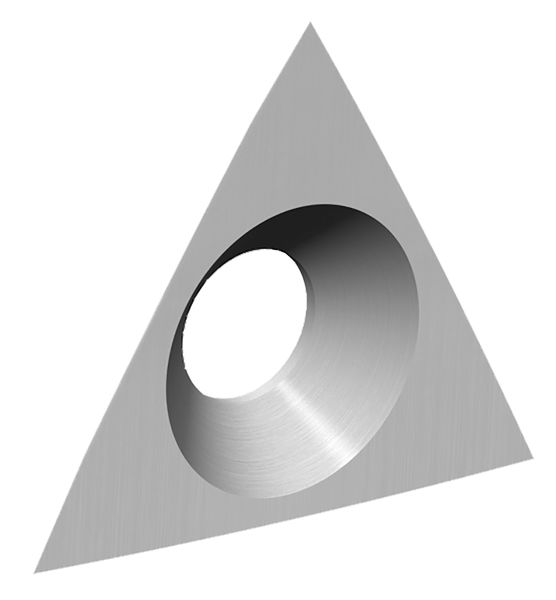

187251 - Turnover Knives HW with 3 cutting edges and countersink - with rounded edges
Product

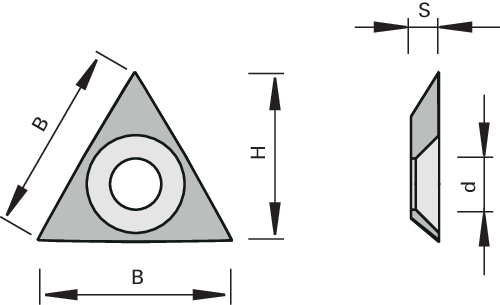

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- for use in t3-System cutterheads
Design
- Cutting material: HW
- HL Solid 20 for hard wood and soft wood
- HL Board 06 for wood-based materials, plastics and hard woods
- topcoat coating for increased edge lives
Advantages
Notes
- Turnover knife 9209773 scoring without projection, suitable for jointing without groove
| Feature | Value | |
|---|---|---|
| Dimension | 20,88x18,3x3 [mm] | |
| B = Width | 20,88 [mm] | |
| H = Height | 18.3 [mm] | |
| S = Thickness | 3 [mm] | |
| Ø d = Bore diameter | 5,5 [mm] | |
| Wedge∡ = Wedge angle | 60 [°] | |
| LEUCODUR = Cutting material | HL Solid 20 | |
| PU = Packing unit | 10 [pc.] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
