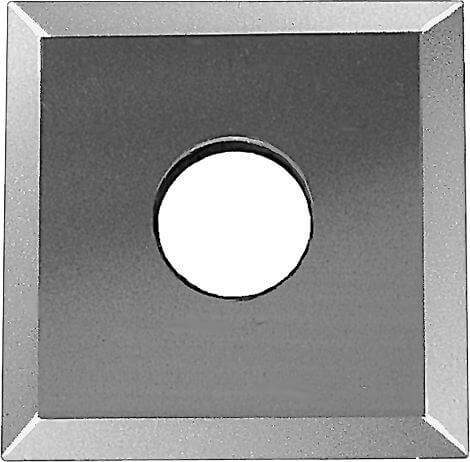

162581 - Turnover Knives HW with 4 cutting edges
Product

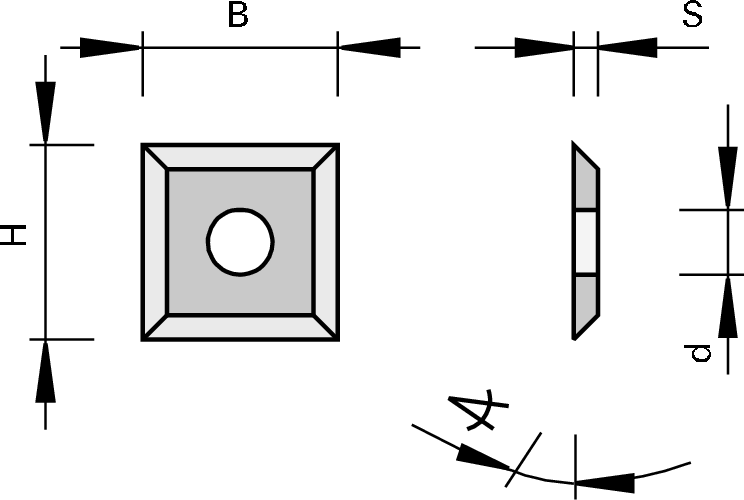

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
Design
- topline (polished face and micro-ground clearance angle)
- cutting material: HW
- HL Board 03 for wood-based panels and plastics
- HL Board 05 for wood-based panels, plastics and hard woods
- HL Board 06 for wood-based panels, plastics, hard and soft woods
- HL Solid 20 topline for hard and soft woods
Advantages
- long edge lives and optimum cutting quality in solid woods
Notes
- packing unit: 10 pieces
| Feature | Value | |
|---|---|---|
| Dimension | 17x17x2 [mm] | |
| B = Width | 17 [mm] | |
| H = Height | 17 [mm] | |
| S = Thickness | 2 [mm] | |
| Ø d = Bore diameter | 4,0 [mm] | |
| Type = Type | 1 | |
| Wedge∡ = Wedge angle | 55 [°] | |
| LEUCODUR = Cutting material | HL Board 05 | |
| PU = Packing unit | 10 [pc.] | |
| L = Delivery Status | ||
| Machine/Type | Weinig | |
|
Dimensions entered are not listed?
available from stock |
||
