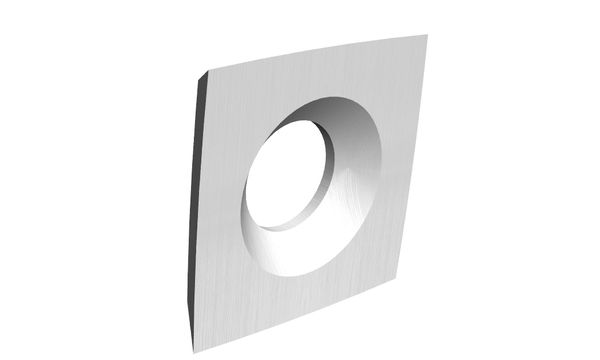

185274 - Turnover Knives HW with 4 cutting edges and countersink
Product

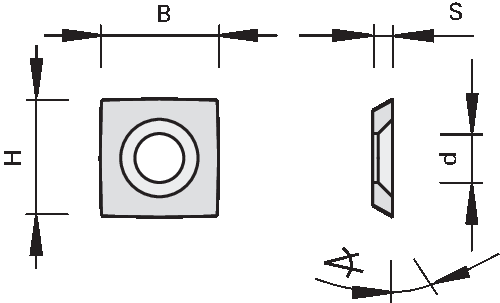

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- machines Homag, Fischer Brugg, IMA, Weinig, Lestro, HOLZ-HER
- for the use as flat scraper on Homag edge banding machines FA20 + FA21
- for use in edge jointing cutterheads
- for use in spiral cutterheads
- for use in cutterheads
Design
- topline (polished face and micro-ground clearance angle)
Advantages
Notes
- Ident-No. 167777 for scoring device of the HOLZ-HER vertical panel sizing saw
- * marking for easier mounting
- packing unit: 10 pieces
| Feature | Value | |
|---|---|---|
| Dimension | 15x15x2 R=150 [mm] | |
| R = Radius | 150 [mm] | |
| B = Width | 15 [mm] | |
| H = Height | 15 [mm] | |
| S = Thickness | 2.5 [mm] | |
| Ø d = Bore diameter | 6,4 [mm] | |
| Wedge∡ = Wedge angle | 60 [°] | |
| LEUCODUR = Cutting material | HL Solid 20 | |
| PU = Packing unit | 10 [pc.] | |
| L = Delivery Status | ||
| Machine/Type | with rounded edges (R=150) | |
|
Dimensions entered are not listed?
available from stock |
||
