186448 - Turnover Knives HW with 4 cutting edges with countersink - Hundegger
Product

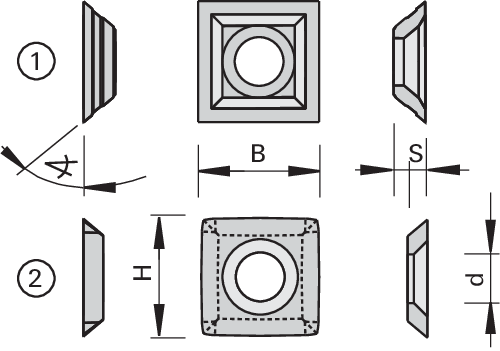

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- machines Hundegger
- for use in cutterheads
Design
- cutting material: HW
- HL Board 06 for wood-based panels, plastics and hard woods
- HL Solid 20 for hard and soft woods
- HL Solid 30 for hard and soft woods
Advantages
- compared to uncoated HW-Turnover Knives the edge lives is 2 - 3 times as long
Notes
- packing unit 10 pieces
- Attention! it is not permitted to mount Ident-No. 186667 + 186668 togehter in one cutterhead. Danger of unbalance!
| Feature | Value | |
|---|---|---|
| B = Width | 11,95 [mm] | |
| H = Height | 11.95 [mm] | |
| S = Thickness | 1.5 [mm] | |
| Ø d = Bore diameter | 4,0 [mm] | |
| Type = Type | 2 | |
| Wedge∡ = Wedge angle | 55 [°] | |
| LEUCODUR = Cutting material | HL Board 06 | |
| PU = Packing unit | 10 [pc.] | |
| L = Delivery Status | ||
| Machine/Type | Hundegger | |
| Remarks | with rounded edges (R=70 mm) | |
|
Dimensions entered are not listed?
available from stock |
||
