Selection via tool type

Dowel Bits HW - without back-guide

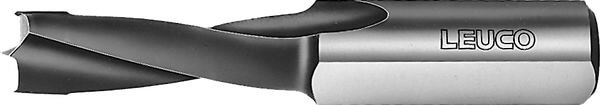

Product

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • portable boring machines
  • automatic boring machines
  • CNC machining centers
  • for chip-free drilling of dowel holes in solid woods and wood-based panels

Design

  • 2 negative spurs
  • centering point
  • spiral without back guide
  • plastic coated
  • HW-tipped

Advantages

  • chip-free hole edges thanks to negative spurs
  • safe drilling thanks to centering point
  • optimum chip evacuation thanks to plastic coating

Notes

  • adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
  • adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
  • clamping elements: combi chuck, quick-change chuck

Table- and picture caption ...

Ø D
[mm] 		L2
[mm] 		Ø d
[mm] 		L3
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

4 27 10 27 57.5 2+2 L 003175
|
4 27 10 27 57.5 2+2 R 003174
|
4.5 27 10 27 57.5 2+2 L 177228
|
4.5 27 10 27 57.5 2+2 R 177227
|
5 27 10 27 57.5 2+2 L 003179
|
5 27 10 27 57.5 2+2 R 003178
|
5.1 27 10 27 57.5 2+2 L 177230
|
5.1 27 10 27 57.5 2+2 R 177229
|
5.2 27 10 27 57.5 2+2 L 167707
|
5.2 27 10 27 57.5 2+2 R 167708
|
Show 1 to 10 of 78 entries
