Twist Drills HS

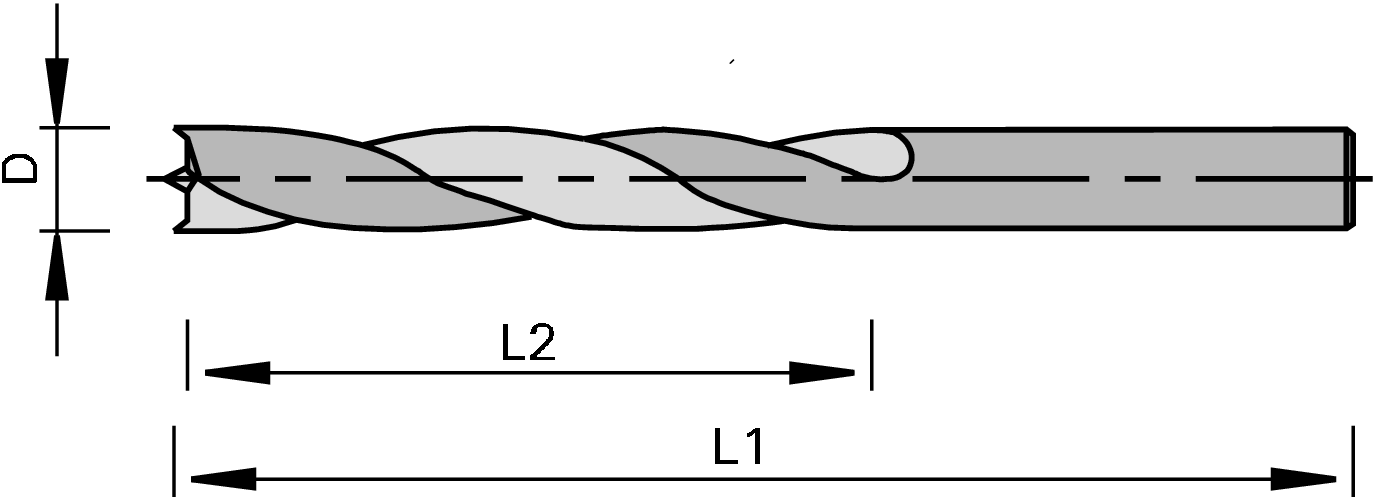

	Ø D [mm]	L2 [mm]	Ø d [mm]	L1 [mm]	Z	L/R	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	2	22	2,0	49	2	L	167671	\|
	2	22	2,0	49	2	R	167669	\|
	2.5	25	2,5	57	2	L	167672	\|
	2.5	25	2,5	57	2	R	167670	\|
	3	30	3,0	61	2	L	160530	\|
	3	30	3,0	61	2	R	160518	\|
	3.5	35	3,5	70	2	L	160531	\|
	3.5	35	3,5	70	2	R	160519	\|
	4	40	4,0	75	2	L	160532	\|
	4	40	4,0	75	2	R	160520	\|
	4.5	45	4,5	80	2	L	160533	\|
	4.5	45	4,5	80	2	R	160521	\|
	5	45	5,0	83	2	L	160534	\|
	5	45	5,0	83	2	R	160522	\|
	5.5	50	5,5	90	2	L	160535	\|
	5.5	50	5,5	90	2	R	160523	\|
	6	50	6,0	90	2	L	160536	\|
	6	50	6,0	90	2	R	160524	\|
	6.5	55	6,5	98	2	R	160525	\|
	7	60	7,0	105	2	R	160526	\|
	7.5	60	7,5	105	2	R	177177	\|
	8	70	8,0	113	2	L	160539	\|
	8	70	8,0	113	2	R	160527	\|
	8.5	70	8,5	113	2	R	177178	\|
	9	75	9,0	120	2	R	160528	\|
	10	80	10	130	2	R	160529	\|
