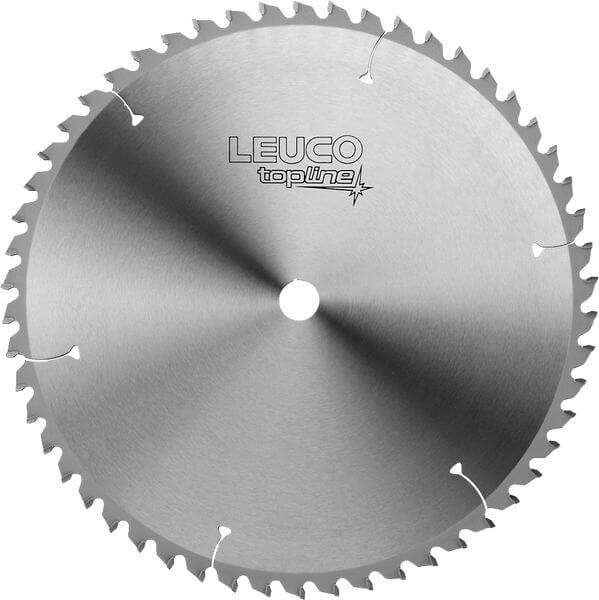

Clipping Saw Blades HW "WS"

Product

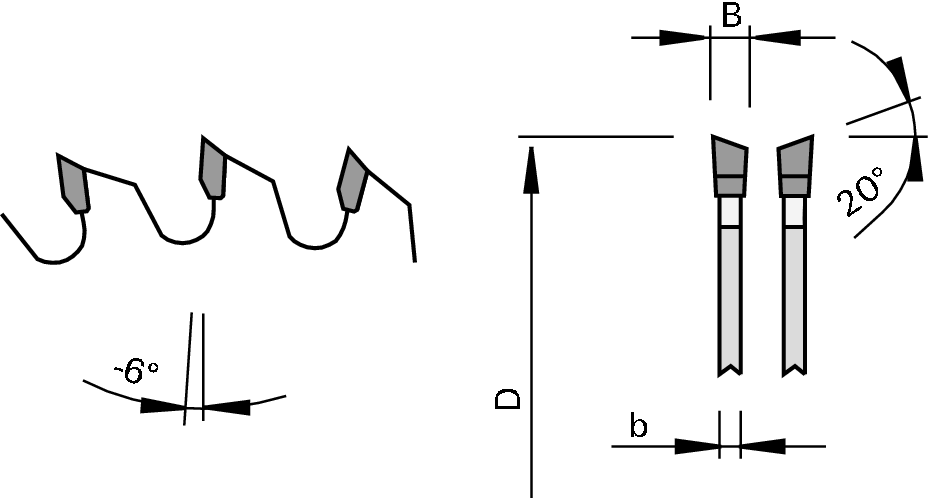

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • chop and cross-cutting saws
  • for cross cuts in solid woods

Design

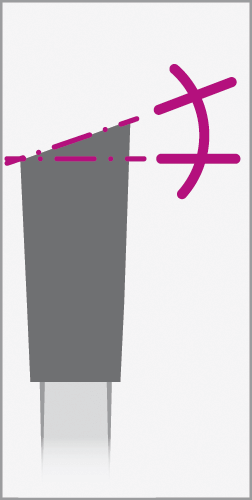

  • negative hook angle
  • tooth configuration: alternate top bevel "WS"
  • cutting material: HW HL Solid 15

Advantages

Notes

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z Hook angle
[°] 		Corner∡
[°] 		Tooth geometry LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

450 4,4 3.2 30 54 -6 20 WS HL Solid 15 188045
|
500 4,4 3.2 30 60 -6 20 WS HL Solid 15 188046
|
