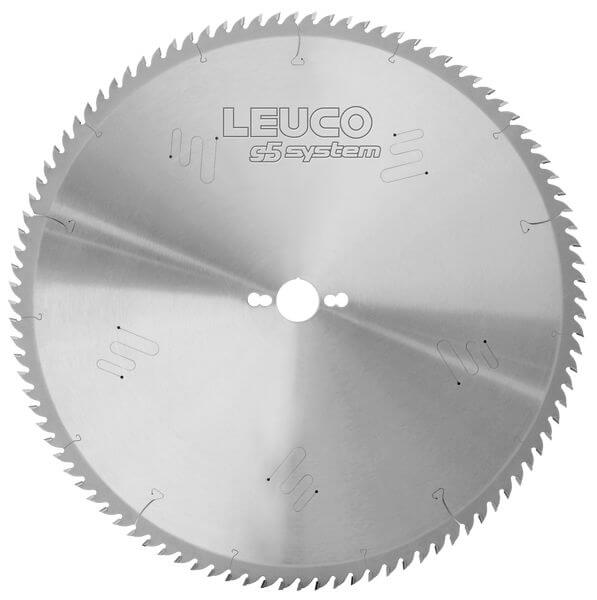

Clipping Saw Blades HW "G5"
Product

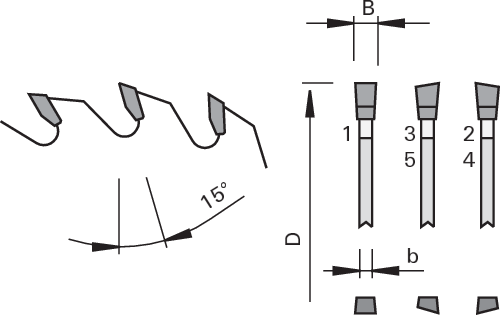

Drawing
-
-
- Tungsten Carbide [HW]
-
Article
Description
Machine / Application
- CNC machining centers and aggregates
- for chip-free sizing cuts as well as clipping and mitre cuts in wood-based panels, solid woods and plastics
Design
- tooth configuration: G5
- cutting material: HW HL Board 04 plus
Advantages
- excellent cutting quality for cross cuts
- excellent cutting quality thanks to special tooth geometry
- extremely long edge lives
- noise reduction thanks to laser ornaments
Notes
- pay attention to nmax!!!
|
Ø D
[mm] |
B
[mm] |

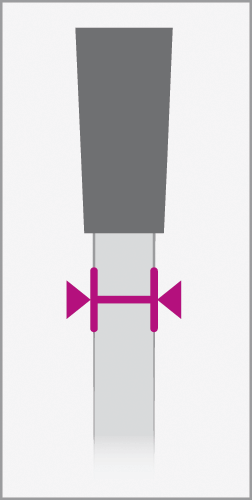

b
[mm] |
Ø d
[mm] |

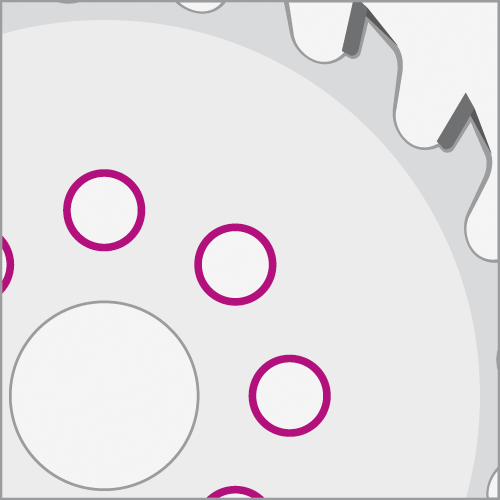

Z | NL |

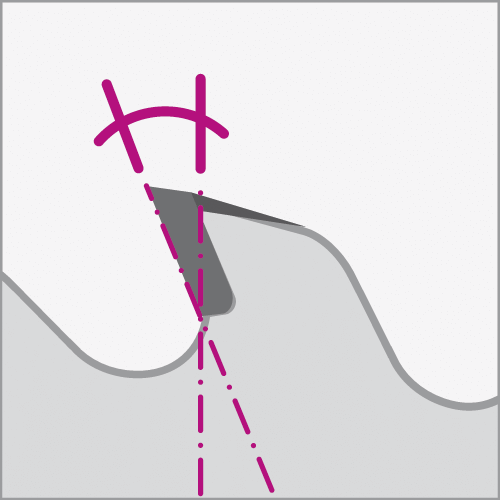

Hook angle
[°] |

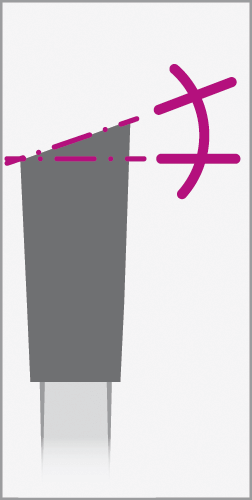

Corner∡
[°] |
Tooth geometry | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||||
| 180 | 3,0 | 2.2 | 30 | 60 | 2 x 4/6/52 | 15 | 15 | G5 | HL Board 04 plus | Homag, Weeke | 192804 | ||
| 180 | 3,0 | 2.2 | 40 | 60 | 8/6/52 | 15 | 15 | G5 | HL Board 04 plus | Homag, Weeke | 192805 | ||
| 200 | 3,0 | 2.2 | 30 | 65 | 2 x 4/6/52 | 15 | 15 | G5 | HL Board 04 plus | Homag | 192806 | ||
| 200 | 3,0 | 2.2 | 30 | 65 | 2/6,2/42 + 4/6,6/60 | 15 | 15 | G5 | HL Board 04 plus | IMA | 192807 | ||
| 220 | 3,0 | 2.2 | 40 | 70 | 8/6/52 | 15 | 15 | G5 | HL Board 04 plus | Homag, Weeke | 192808 | ||
| 240 | 3,0 | 2.2 | 30 | 75 | 2 x 4/6/52 | 15 | 15 | G5 | HL Board 04 plus | Homag | 192809 | ||
| 240 | 3,0 | 2.2 | 40 | 75 | 8/6/52 | 15 | 15 | G5 | HL Board 04 plus | Homag, Weeke | 192810 | ||
| 240 | 3,0 | 2.2 | 30 | 75 | 2/6,2/42 + 4/6,6/60 | 15 | 15 | G5 | HL Board 04 plus | IMA | 192811 | ||
| 280 | 3,0 | 2.2 | 30 | 85 | 2 x 4/6/52 | 15 | 15 | G5 | HL Board 04 plus | Homag | 192812 | ||
