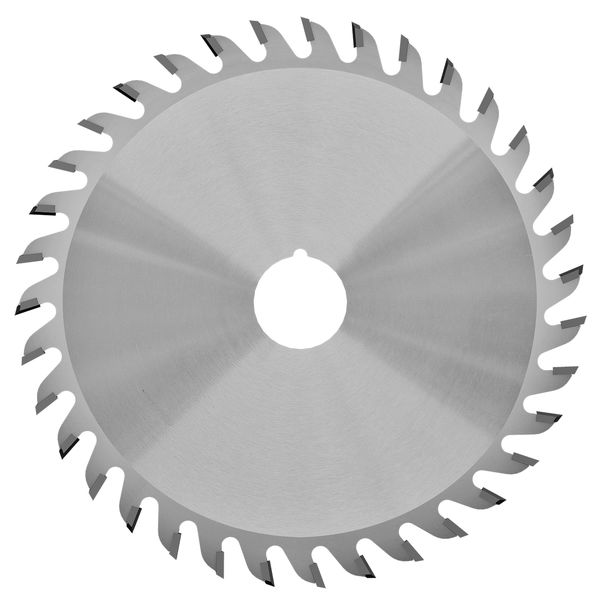

Grooving Saw Blades DP "G5"

Product

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • Weeke BHX series
  • CNC machining centers and aggregates
  • for chip-free grooving in solid woods, raw and laminated wood-based panels and plastics

Design

  • tooth configuration: G5
  • cutting material: DP

Advantages

  • excellent cutting quality
  • noise reduction due to the very low cutting pressure
  • extremely long edge lives

Notes

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

100 4,0 3.2 30 35 15 Weeke BHX Series 050/055 193315
|
120 4,0 3.2 20 35 15 193316
|
125 5,0 4.2 30 35 2x4/5,5/48 15 Weeke BHX Series 500 and other BAZ, BOF m/c and aggregates 193318
|
125 4,0 3.2 30 35 2x4/5,5/48 15 Weeke BHX Series 500 and other BAZ, BOF m/c and aggregates 193317
|
Show 1 to 4 of 4 entries
