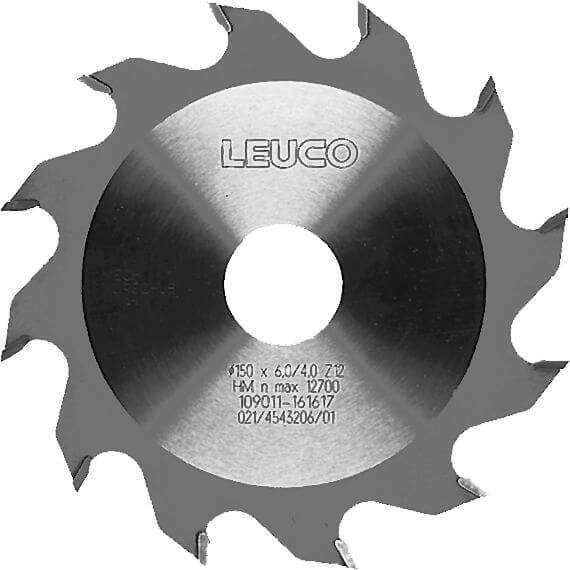

Grooving Saw Blades HW
Product

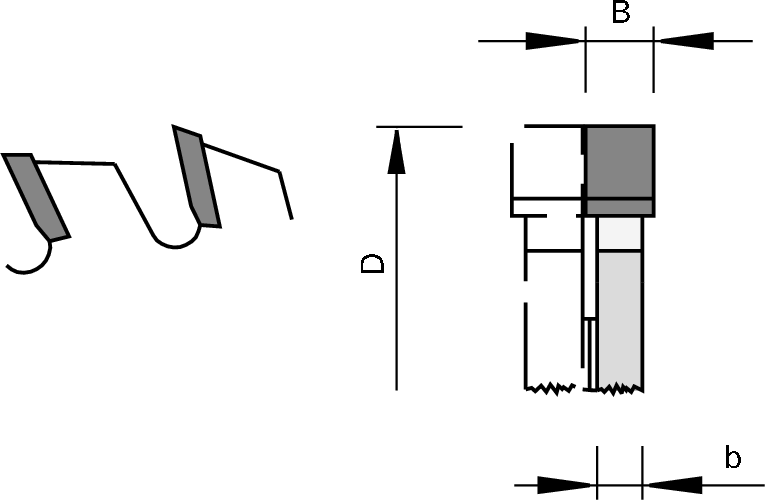

Drawing
-
- Tungsten Carbide [HW]
- MEC
Article
Description
Machine / Application
- molders
- double end tenoners
- for chip-free grooving in solid woods and in wood-based panels
Design
Advantages
Notes
- for Z = 12 and Z = 18 other groove widths are possible when tools are assembled as a set
- groove width calculation for tool sets: sum of all "b" + HW overlap left and right + shim thickness
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
DKN
[mm] |
NL |
Hook angle
[°] |
nmax
[min-1] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 150 | 4,0 | 3 | 30 | 12 | 12,700 | 160802 | |||||
| 150 | 5,0 | 4 | 30 | 12 | 12,700 | 001434 | |||||
| 150 | 6,0 | 4 | 30 | 12 | 12,700 | 161617 | |||||
| 150 | 7,0 | 5 | 30 | 12 | 12,700 | 161619 | |||||
| 150 | 8,0 | 5 | 30 | 12 | 12,700 | 161620 | |||||
| 150 | 10 | 6 | 30 | 12 | 12,700 | 161622 | |||||
| 150 | 5,0 | 4 | 35 | 12 | 10x4 | 12,700 | 001435 | ||||
| 150 | 10 | 6 | 35 | 12 | 10x4 | 12,700 | 161623 | ||||
| 150 | 1,5 | 0.8 | 35 | 18 | 10x4 | 10,200 | 001447 | ||||
| 150 | 1,8 | 1 | 35 | 18 | 10x4 | 10,200 | 001448 | ||||
| 150 | 2,0 | 1.2 | 35 | 18 | 10x4 | 10,200 | 001449 | ||||
| 150 | 2,2 | 1.2 | 35 | 18 | 10x4 | 10,200 | 001450 | ||||
| 150 | 2,5 | 1.5 | 35 | 18 | 10x4 | 10,200 | 001451 | ||||
| 150 | 3,0 | 2 | 35 | 18 | 10x4 | 12,700 | 001452 | ||||
| 150 | 4,0 | 3 | 35 | 18 | 10x4 | 12,700 | 001453 | ||||
| 150 | 5,0 | 4 | 35 | 18 | 10x4 | 12,700 | 001454 | ||||
| 150 | 6,0 | 4 | 35 | 18 | 10x4 | 12,700 | 161627 | ||||
| 150 | 8,0 | 5 | 35 | 18 | 10x4 | 12,700 | 161628 | ||||
| 150 | 4,0 | 3 | 30 | 24 | 12,700 | 169689 | |||||
| 150 | 5,0 | 4 | 30 | 24 | 12,700 | 169688 | |||||
| 150 | 6,0 | 4 | 30 | 24 | 12,700 | 169687 | |||||
| 150 | 4,0 | 3 | 30 | 48 WS | 12,700 | 160804 | |||||
| 180 | 4,0 | 3 | 30 | 12 | 10,600 | 001442 | |||||
| 180 | 5,0 | 4 | 30 | 12 | 10,600 | 001443 | |||||
| 180 | 6,0 | 4 | 30 | 12 | 10,600 | 161624 | |||||
| 180 | 8,0 | 5 | 30 | 12 | 10,600 | 161625 | |||||
| 180 | 10 | 6 | 30 | 12 | 10,600 | 161626 | |||||
| 180 | 4,0 | 3 | 30 | 18 | 15 | 10,600 | 169685 | ||||
| 180 | 5,0 | 4 | 30 | 18 | 15 | 10,600 | 169684 | ||||
| 180 | 8,0 | 5 | 30 | 18 | 15 | 10,600 | 169683 | ||||
| 180 | 10 | 6 | 30 | 18 | 15 | 10,600 | 169682 | ||||
| 180 | 3,0 | 2.2 | 65 | 24 | 2 x 6/5,5/90 | 15 | 10,600 | 192989 | |||
| 180 | 3,5 | 2.5 | 65 | 24 | 2 x 6/5,5/90 | 15 | 10,600 | 192990 | |||
| 180 | 4,0 | 2.8 | 65 | 24 | 2 x 6/5,5/90 | 15 | 10,600 | 192991 | |||
| 196 | 6,0 | 5 | 30 | 12 WS | 9,500 | 163836 | |||||
| 200 | 4,0 | 2.8 | 30 | 24 | 9,500 | 1527332 | |||||
| 200 | 4,5 | 2.8 | 30 | 24 | 9,500 | 1527333 | |||||
| 200 | 5,0 | 2.8 | 30 | 24 | 9,500 | 1527334 | |||||
| 200 | 5,5 | 2.8 | 30 | 24 | 9,500 | 1527335 | |||||
| 200 | 6,0 | 2.8 | 30 | 24 | 9,500 | 1527336 | |||||
| 200 | 6,5 | 2.8 | 30 | 24 | 9,500 | 1527337 | |||||
| 200 | 7,0 | 5 | 30 | 24 | 9,500 | 1527339 | |||||
| 200 | 7,5 | 5 | 30 | 24 | 9,500 | 1527340 | |||||
| 200 | 8,0 | 5 | 30 | 24 | 9,500 | 1527341 | |||||
| 200 | 8,5 | 5 | 30 | 24 | 9,500 | 1527342 | |||||
| 200 | 9,0 | 5 | 30 | 24 | 9,500 | 1527343 | |||||
| 200 | 9,5 | 5 | 30 | 24 | 9,500 | 1527344 | |||||
| 200 | 10 | 5 | 30 | 24 | 9,500 | 1527345 | |||||
| 220 | 4,0 | 3 | 30 | 30 | 8,700 | 1521934 | |||||
| 220 | 4,5 | 3 | 30 | 30 | 8,700 | 1521935 | |||||
| 220 | 5,0 | 3 | 30 | 30 | 8,700 | 1521936 | |||||
| 220 | 5,5 | 3 | 30 | 30 | 8,700 | 1521937 | |||||
| 220 | 6,0 | 3 | 30 | 30 | 8,700 | 1521938 | |||||
| 220 | 6,5 | 3 | 30 | 30 | 8,700 | 1521939 | |||||
| 220 | 7,0 | 5 | 30 | 30 | 8,700 | 1521941 | |||||
| 220 | 7,5 | 5 | 30 | 30 | 8,700 | 1521942 | |||||
| 220 | 8,0 | 5 | 30 | 30 | 8,700 | 1521943 | |||||
| 220 | 8,5 | 5 | 30 | 30 | 8,700 | 1521944 | |||||
| 220 | 9,0 | 5 | 30 | 30 | 8,700 | 1521945 | |||||
| 220 | 9,5 | 5 | 30 | 30 | 8,700 | 1521946 | |||||
| 220 | 10 | 5 | 30 | 30 | 8,700 | 1521947 | |||||
