NF-Chop Saw Blades HW - profiles "TR-F K" - easyFix

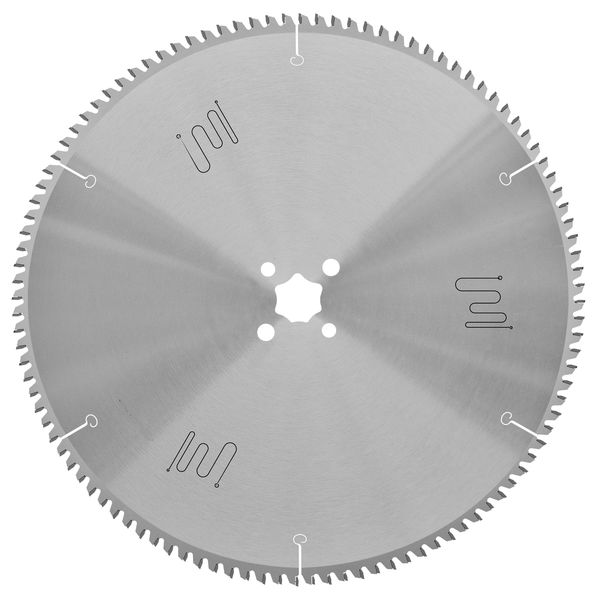

Product

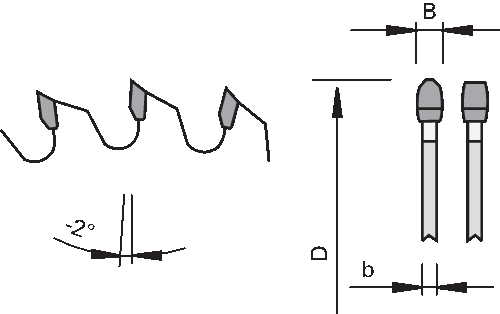

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • clipping and miter saws
  • table saws
  • for burr-free and very smooth cuts in thin-walled aluminum profiles

Design

  • negative hook angle
  • tooth configuration: "TR-F K"
  • cutting material: HW HL Board 06

Advantages

  • easyFix: NEW, EASY HANDLING, easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
  • very clean cutting surfaces due to convex tooth sides
  • very long edge life and economic efficiency

Notes

  • secure workpiece clamping required
  • wall thickness max. 5 mm (optimum 2-3 mm)

Table- and picture caption ...

Ø D
[mm] 		B

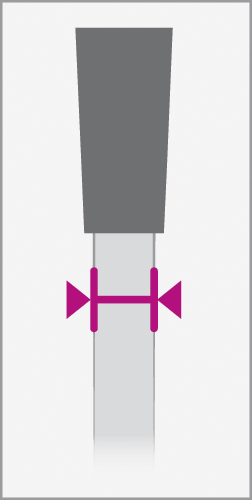

[mm] 		b
[mm] 		Ø d

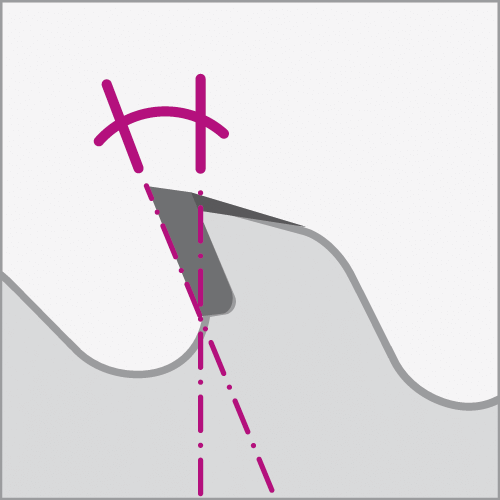

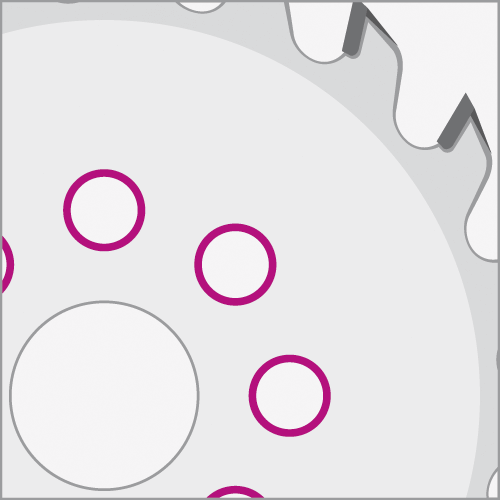

[mm] 		Z NL Hook angle
[°] 		Tooth geometry LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

350 3,2 2.5 30 96 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 -2 TR-F K HL Board 06 193291
|
380 3,8 3.2 32 108 2/11/63 -2 TR-F K HL Board 06 193292
|
400 3,8 3.2 30 108 2/10/60 + 2/12/64 -2 TR-F K HL Board 06 193293
|
420 4,0 3.2 30 108 2/10/60 + 2/11/70 -2 TR-F K HL Board 06 193294
|
450 3,8 3.2 30 120 2/10/60 + 2/11/70 -2 TR-F K HL Board 06 193295
|
500 4,0 3.4 30 144 2/10/60 + 2/11/70 -2 TR-F K HL Board 06 193296
|
550 4,0 3.4 30 144 2/11/63 + 2/11/70 -2 TR-F K HL Board 06 193297
|
600 5,0 4 30 140 2/11/63 + 2/11/70 -2 TR-F K HL Board 06 193298
|
