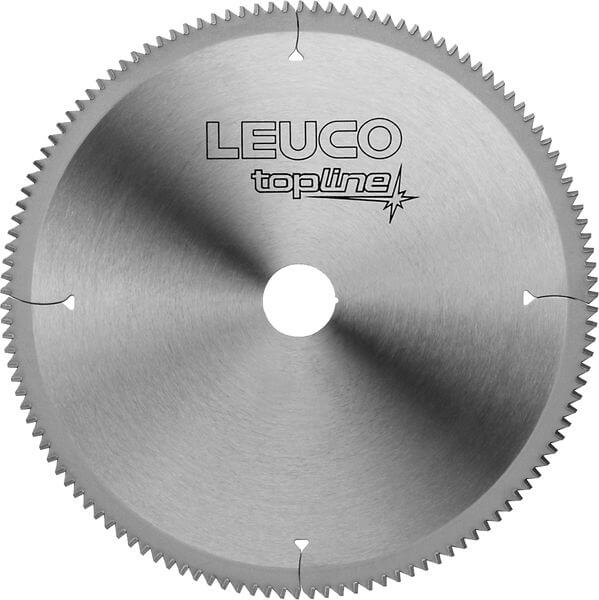

NF-Chop Saw Blades HW "TR-F"

Product

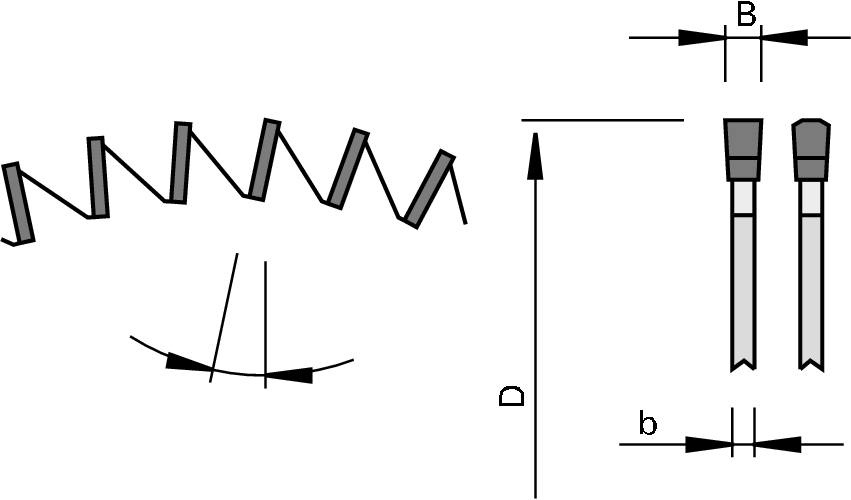

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • chop and miter saws
  • for cross cuts in thin-walled plastic and aluminum profiles

Design

  • negative hook angle
  • tooth configuration: triple chip / flat "TR-F"
  • cutting material: HW HL Board 10

Advantages

  • smooth running and no chipping of edges of the workpiece thanks to the high number of teeth

Notes

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z Hook angle
[°] 		Tooth geometry LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

200 2,2 2 30 100 -6 TR-F HL Board 10 188388
|
250 2,2 1.6 30 126 -6 TR-F HL Board 10 189709
|
