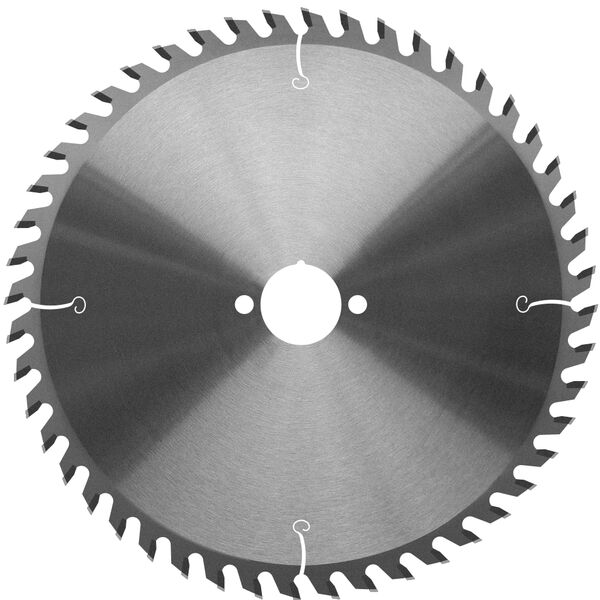

Portable Saw Blades HW "WS"

Product

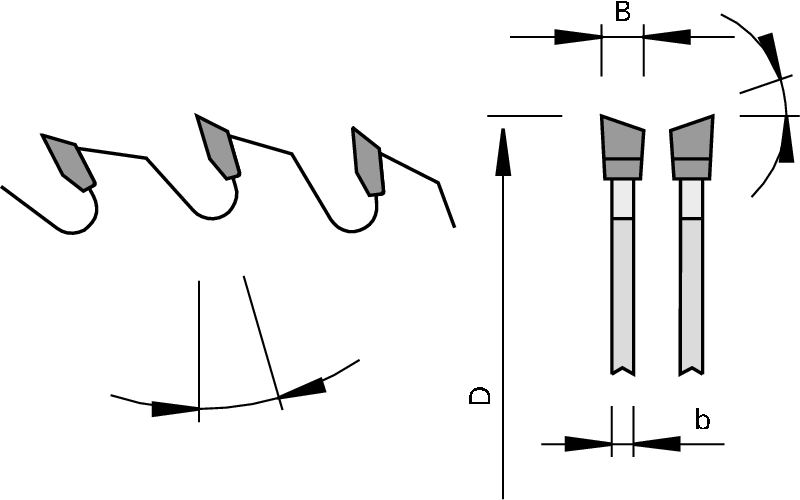

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • portable saws
  • chop and miter saws
  • for ripping and cross cuts in solid woods and wood-based panels

Design

  • tooth configuration: alternate top bevel "WS"
  • cutting material: HW HL Board 10

Advantages

Notes

  • lower numbers of teeth for solid woods
  • higher numbers of teeth for wood-based panels

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Tooth geometry Cutting quality* Dimension
[mm] 		LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

100 2,4 1.4 12 30 10 WS ▲▲▲ HL Board 10 50110001
|
100 2,4 1.4 22 30 10 WS ▲▲▲ HL Board 10 50110003
|
105 2,4 1.4 22 30 10 WS ▲▲▲ HL Board 10 50110006
|
120 1,8 1.3 20 24 15 WS ▲▲ HL Board 10 50104061
|
125 2,4 1.6 20 20 2/5,5/30 15 WS ▲▲ HL Board 10 50110011
|
125 2,4 1.6 20 36 2/6/32,5 10 WS ▲▲▲ HL Board 10 50110012
|
130 2,4 1.6 20 20 2/6/32,5 15 WS ▲▲ HL Board 10 50110017
|
130 2,4 1.6 20 36 2/6/32,5 10 WS ▲▲ HL Board 10 50110018
|
140 2,4 1.6 20 20 2/6/32,5 15 WS ▲▲ HL Board 10 50110028
|
140 2,4 1.6 20 36 2/6/32,5 10 WS ▲▲▲ HL Board 10 50110029
|
150 2,6 1.6 20 12 2/6/32,5 20 WS ▲ HL Board 10 50110243
|
150 2,6 1.6 20 24 2/6/32,5 15 WS ▲▲ HL Board 10 50110039
|
150 2,6 1.6 20 36 2/6/32,5 15 WS ▲▲▲ HL Board 10 50110040
|
150 2,6 1.6 20 48 2/6/32,5 10 WS ▲▲▲▲ HL Board 10 50110041
|
160 2,6 1.6 16 24 2/6/32,5 15 WS ▲▲ HL Board 10 50110051
|
160 2,6 1.6 16 48 2/6/32,5 10 WS ▲▲▲▲ HL Board 10 50110053
|
160 2,2 1.6 20 12 2/6/32,5 20 WS ▲ HL Board 10 50110244
|
160 2,2 1.6 20 24 2/6/32,5 15 WS ▲▲ 160x2,2x1,6x20 Z=24 WS HL Board 10 50110054
|
160 2,2 1.6 20 36 2/6/32,5 15 WS ▲▲▲ 160x2,2x1,6x20 Z=36 WS HL Board 10 50110055
|
160 2,2 1.6 20 48 2/6/32,5 10 WS ▲▲▲▲ 160x2,2x1,6x20 Z=48 WS HL Board 10 50110056
|
160 2,6 1.6 30 24 2/7/42 15 WS ▲▲ HL Board 10 50110057
|
160 2,6 1.6 30 36 2/7/42 15 WS ▲▲▲ HL Board 10 50110058
|
160 2,6 1.6 30 48 2/7/42 10 WS ▲▲▲▲ HL Board 10 50110059
|
165 2,6 1.6 20 24 2/6/32,5 15 WS ▲ HL Board 10 50110060
|
165 2,6 1.6 20 36 2/6/32,5 15 WS ▲▲▲ HL Board 10 50110061
|
165 2,6 1.6 20 48 2/6/32,5 10 WS ▲▲▲▲ HL Board 10 50110062
|
165 2,6 1.6 30 24 2/7/42 15 WS ▲ HL Board 10 50110130
|
170 2,6 1.6 30 24 2/7/42 20 WS ▲▲ HL Board 10 50110069
|
170 2,6 1.6 30 36 2/7/42 15 WS ▲▲▲ HL Board 10 50110070
|
170 2,6 1.6 30 48 2/7/42 10 WS ▲▲▲▲ HL Board 10 50110071
|
180 2,6 1.6 16 24 2/6/32,5 15 WS ▲▲ HL Board 10 50110081
|
180 2,6 1.6 16 48 2/6/32,5 10 WS ▲▲▲▲ HL Board 10 50110183
|
180 2,6 1.6 20 24 2/6/32,5 20 WS ▲▲ HL Board 10 50110075
|
180 2,6 1.6 20 40 2/6/32,5 15 WS ▲▲▲ HL Board 10 50110076
|
180 2,6 1.6 30 14 2/7/42 20 WS ▲ HL Board 10 50110248
|
180 2,6 1.6 30 24 2/7/42 20 WS ▲▲ HL Board 10 50110078
|
180 2,6 1.6 30 40 2/7/42 15 WS ▲▲▲ HL Board 10 50110079
|
180 2,6 1.6 30 54 2/7/42 10 WS ▲▲▲▲ HL Board 10 50110080
|
190 2,6 1.6 16 24 2/6/32,5 15 WS ▲▲ HL Board 10 50110153
|
190 2,6 1.6 16 30 2/6/32,5 15 WS ▲▲▲ HL Board 10 50110083
|
190 2,6 1.6 16 42 2/6/32,5 10 WS ▲▲▲▲ HL Board 10 50110084
|
190 2,6 1.6 20 24 2/6/32,5 15 WS ▲▲ HL Board 10 50110154
|
190 2,6 1.6 20 30 2/6/32,5 15 WS ▲▲▲ HL Board 10 50110086
|
190 2,6 1.6 20 48 2/6/32,5 10 WS ▲▲▲▲ HL Board 10 50110087
|
190 2,6 1.6 30 16 2/7/42 20 WS ▲ HL Board 10 50110251
|
190 2,6 1.6 30 24 2/7/42 20 WS ▲▲ 190x2,6x1,6x30 Z= 24 WS HL Board 10 50110155
|
190 2,6 1.6 30 30 2/7/42 15 WS ▲▲▲ 190x2,6x1,6x30 Z= 30 WS HL Board 10 50110089
|
190 2,6 1.6 30 48 2/7/42 10 WS ▲▲▲▲ 190x2,6x1,6x30 Z= 48 WS HL Board 10 50110090
|
190 2,6 1.6 30 60 2/7/42 10 WS ▲▲▲▲ HL Board 10 50110091
|
200 2,8 1.8 30 18 2/7/42 20 WS ▲ HL Board 10 50110252
|
200 2,8 1.8 30 30 2/7/42 15 WS ▲▲▲ HL Board 10 50110095
|
200 2,8 1.8 30 48 2/7/42 15 WS ▲▲▲▲ HL Board 10 50110096
|
205 2,6 1.8 18 30 15 WS ▲▲▲ HL Board 10 50110286
|
210 2,8 1.8 30 18 2/7/42 20 WS ▲ HL Board 10 50110253
|
210 2,8 1.8 30 30 2/7/42 15 WS ▲▲▲ HL Board 10 50110104
|
210 2,8 1.8 30 48 2/7/42 15 WS ▲▲▲▲ HL Board 10 50110105
|
210 2,8 1.8 30 60 2/7/42 10 WS ▲▲▲▲ HL Board 10 50110106
|
216 2,8 1.8 30 30 2/7/42 20 WS ▲▲▲ HL Board 10 50110107
|
216 2,8 1.8 30 48 2/7/42 15 WS ▲▲▲▲ HL Board 10 50110108
|
216 2,8 1.8 30 60 2/7/42 10 WS ▲▲▲▲ HL Board 10 50110109
|
220 2,8 1.8 30 24 2/7/42 15 WS ▲▲ HL Board 10 50110164
|
220 2,8 1.8 30 36 2/7/42 15 WS ▲▲▲ HL Board 10 50110110
|
220 2,8 1.8 30 48 2/7/42 15 WS ▲▲▲▲ HL Board 10 50110111
|
220 2,8 1.8 30 64 2/7/42 10 WS ▲▲▲▲ HL Board 10 50110112
|
225 2,8 1.8 30 24 2/7/42 15 WS ▲▲ HL Board 10 50110165
|
225 2,8 1.8 30 34 2/7/42 15 WS ▲▲▲ HL Board 10 50110228
|
225 2,8 1.8 30 48 2/7/42 10 WS ▲▲▲▲ HL Board 10 50110237
|
230 2,8 1.8 30 18 2/7/42 20 WS ▲ HL Board 10 50110255
|
230 2,8 1.8 30 24 2/7/42 15 WS ▲▲ HL Board 10 50110168
|
230 2,8 1.8 30 36 2/7/42 15 WS ▲▲▲ HL Board 10 50110113
|
230 2,8 1.8 30 48 2/7/42 15 WS ▲▲▲▲ HL Board 10 50110114
|
230 2,8 1.8 30 64 2/7/42 10 WS ▲▲▲▲ HL Board 10 50110115
|
235 2,8 1.8 30 18 2/7/42 20 WS ▲ HL Board 10 50110256
|
235 2,8 1.8 30 24 2/7/42 15 WS ▲▲ 235x2,8x1,8x30 Z= 24 WS HL Board 10 50110170
|
235 2,8 1.8 30 36 2/7/42 15 WS ▲▲▲ HL Board 10 50110117
|
235 2,8 1.8 30 48 2/7/42 15 WS ▲▲▲▲ 235x2,8x1,8x30 Z= 48 WS HL Board 06 58110121
|
235 2,8 1.8 30 64 2/7/42 10 WS ▲▲▲▲ HL Board 06 58110118
|
240 2,8 1.8 30 24 2/7/42 20 WS ▲▲ HL Board 10 50110174
|
240 2,8 1.8 30 36 2/7/42 15 WS ▲▲▲ HL Board 10 50110123
|
240 2,8 1.8 30 48 2/7/42 15 WS ▲▲▲▲ HL Board 06 50110124
|
250 3,2 2.2 30 24 2/7/42 + 2/9,5/46,5 + 2/10/60 20 WS ▲▲ 250x3,2x2,2x30 Z= 24 WS HL Board 10 58120060
|
250 3,2 2.2 30 30 2/7/42 + 2/9,5/46,5 + 2/10/60 20 WS ▲▲ HL Board 10 58120061
|
250 3,2 2.2 30 40 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲ 250x3,2x2,2x30 Z= 40 WS HL Board 10 58100018
|
250 3,2 2.2 30 48 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲▲ HL Board 10 58100026
|
250 3,2 2.2 30 60 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲▲ HL Board 10 58100031
|
250 3,2 2.2 30 80 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲▲ HL Board 10 58100038
|
254 3,2 2.2 30 40 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲ HL Board 10 58120067
|
254 3,2 2.2 30 60 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲▲ HL Board 10 58120068
|
260 3,2 2.2 30 32 2/7/42 + 2/9,5/46,5 + 2/10/60 20 WS ▲▲ HL Board 10 58110185
|
260 3,2 2.2 30 40 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲ HL Board 06 58110175
|
260 3,2 2.2 30 60 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲▲ HL Board 06 58100254
|
270 3,2 2.2 30 24 2/7/42 + 2/9,5/46,5 + 2/10/60 20 WS ▲▲ HL Board 10 58110176
|
270 3,2 2.2 30 60 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲▲ HL Board 06 58110182
|
280 3,2 2.2 30 48 2/7/42 + 2/9,5/46,5 + 2/10/60 10 WS ▲▲▲▲ HL Board 06 58110136
|
