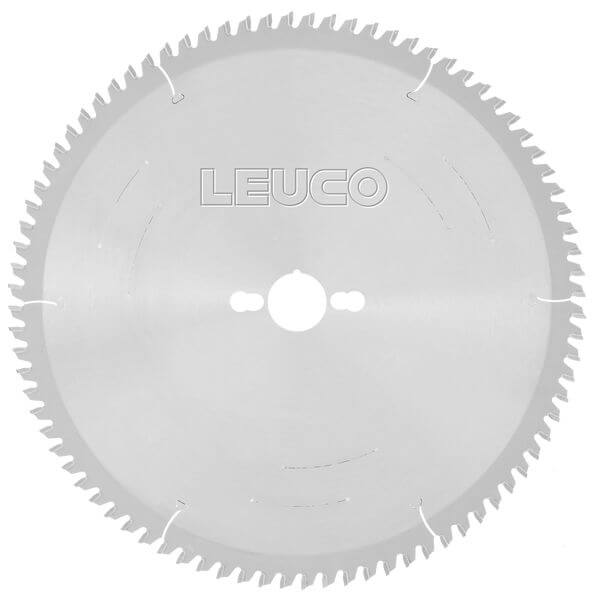

Sizing Saw Blades HW "TR-F-FA" - plastics

Product

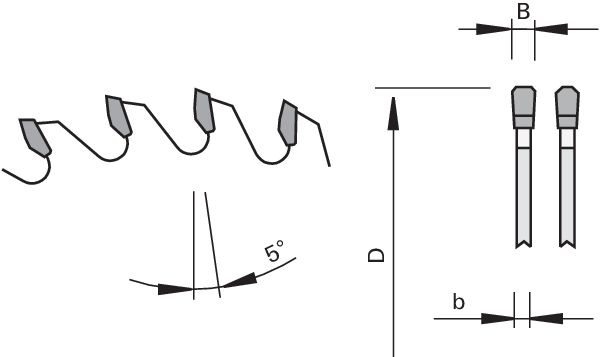

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • table saws
  • vertical panel sizing saws
  • for finish cuts in varying thermoplastic materials

Design

  • with laser ornaments
  • tooth configuration: triple chip / flat with chamfer "TR-F-FA"
  • cutting material: HW HL Board 06

Advantages

  • less vibration and noise thanks to laser ornaments

Notes

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Tooth geometry LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

303 3,2 2.2 30 84 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 5 TR-F-FA HL Board 06 193109
|
