Selection via tool type

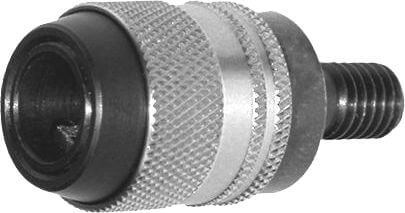

Drill Bit Quick-Changing Systems

Product

Drawing

Article

Description

Machine / Application

  • boring machines
  • CNC machining centers
  • for mounting of drill bits with cylindrical shank and clamping surface

Design

Advantages

  • low downtimes thanks to fast drill bit changes
  • no special adjusting screw necessary
  • for all common drill bits with shank Ø 10 mm and boring Ø < 20 mm

Notes

  • for threaded shank design and appropriate machines see Technical Information

Table- and picture caption ...

Ø d1
[mm] 		Ø d
[mm] 		Ø D
[mm] 		Ø D1
[mm] 		L1
[mm] 		L3
[mm] 		Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

10 M8 20 9 42 15 C 182395
|
10 M8 20 9 42 15 C 182396
|
10 M8 20 42 15 A 182397
|
10 M8 20 42 15 A 182398
|
10 10 20 45 18 182399
|
10 10 20 45 18 182400
|
10 M10 20 11 42 15 D 182401
|
10 M10 20 11 42 15 D 182402
|
10 M10 20 42 15 B 182403
|
10 M10 20 42 15 B 182404
|
Show 1 to 10 of 10 entries
