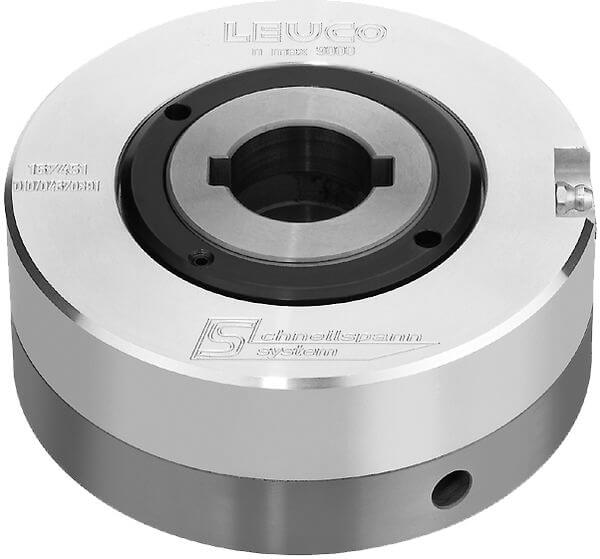

Clamping Systems Ø 140 mm
Product
Drawing
Article
Description
Machine / Application
- double end tenoners
- through feed machines
- for mounting of tools with bore and for combination with mounting flanges Ø 140 mm
Design
- n max = 9,000 min-1
Advantages
- excellent balance quality
- long tool life thanks to hardened tool mounting area
- consistent runout accuracy after each tool change
- minimization of setup-times thanks to easy and quick tool change
- maintenance-free and protected from dust
Notes
- for clockwise and counter-clockwise rotation
- mounting examples (see drawings): shaft with internal thread, shaft with external thread
- indicate machine type and shaft design when placing an order
- required tool adapters Class-No. 997370
- for changing the tools the pneumatic part Ident-No. 058250 is necessary
- operational pressure 6 bar
- included in delivery: clamping part incl. cap for attachment on the machine spindle (spare parts for Homag and IMA not included in delivery)
|
Ø d
[mm] |
Ø D
[mm] |
Ø D2
[mm] |
L1
[mm] |
L3
[mm] |
DKN
[mm] |
Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 35 | 140 | 80 | 57 | 41.5 | 10x4 | Homag, IMA | 167451 | ||
