Clamping Systems Ø 192 mm

Product

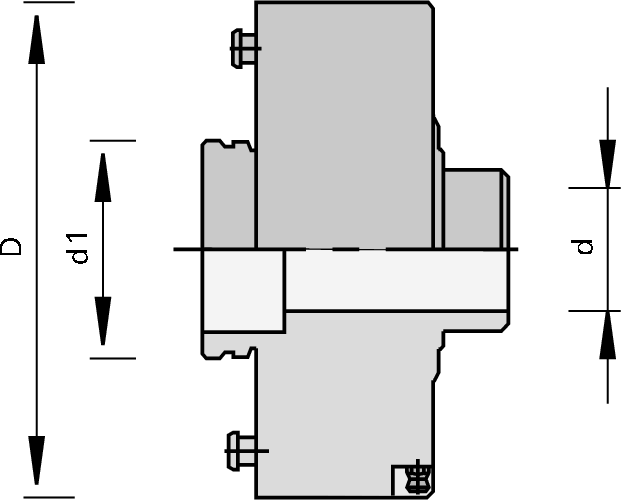

Drawing

Article

Description

Machine / Application

  • double end tenoners
  • through feed machines
  • for mounting of hoggers with Ø 250 mm

Design

  • n max = 7,200 min-1

Advantages

  • excellent balance quality
  • long tool life thanks to hardened tool mounting area
  • consistent runout accuracy after each tool change
  • minimization of setup-times thanks to easy and quick tool change
  • maintenance-free and protected from dust

Notes

  • for clockwise and counter-clockwise rotation
  • mounting example (see drawing)
  • indicate machine type and shaft design when placing an order
  • for changing the tools the pneumatic part Ident-No. 058250 is necessary
  • operational pressure 6 bar
  • included in delivery: see table

Table- and picture caption ...

Ø d1
[mm] 		Ø d
[mm] 		Ø D
[mm] 		Dimension
[mm] 		DKN
[mm] 		Machine/Type Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

80 35 192 192x35 10x4 IMA, B+G, Hüllhorst clamping part, spacer ring 161363
|
80 35 192 192x35 10x4 Danckaert clamping part, spacer ring, cover disk 161367
|
80 35 192 10x4 Homag, Lehbrink, Torwegge, SPA, Wilmsmeyer clamping part 161259
|
