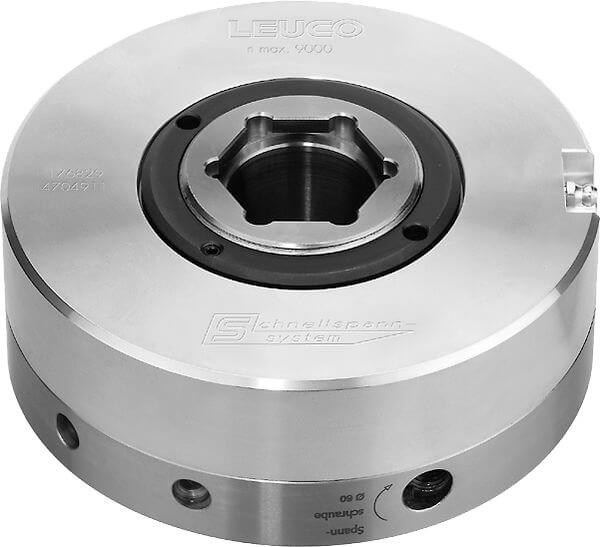

Hydro Clamping System Ø 160 mm - cutters
Product
Drawing
Article
Description
Machine / Application
- for mounting of tools with bore
Design
- hardened tool mounting area
- n max = 9,000 min-1
- closed hydraulic system with two clamping zones
- clamping zone 1: for tight-tolerance fit on the motor shaft (runout)
- clamping zone 2: for tight-tolerance fit of milling tools on the clamping element (concentricity)
Advantages
- high cutting quality thanks to distinctly increased runout accuracy and concentricity
- consistent runout accuracy after each tool change
- minimization of setup-times thanks to easy and quick tool change
- maintenance-free
Notes
- for clockwise and counter-clockwise rotation
- specifically designed for high-precision motors with hexagonal spindle base
- for changing the tools the pneumatic part Ident-No. 058250 is necessary
- operational pressure 6 bar
- included in delivery: hydro quick-clamping system incl. Screwdrivers
|
Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
Ø D
[mm] |
a
[mm] |
Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 60 | 35 | 40 | 160 | 53 | milling tools | 176829 | ||
