CD010 VHW high-performance drill bit

Product

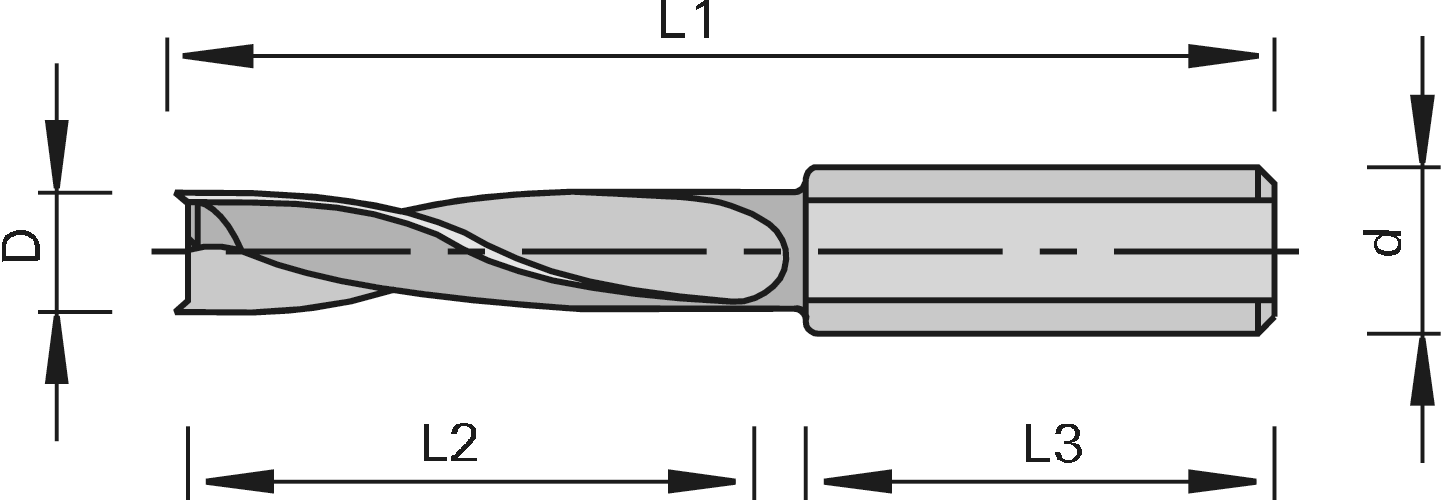

Drawing

  • Solid Tungsten Carbide
  • MAN

Article

Description

Machine / Application

  • best results on CNC and gantry machines but also suitable for ADUs and MDUs
  • ideally suited for AFRP and natural fiber reinforced plastics, honeycomb and sandwich materials or block materials

Design

  • patented tip geometry which differs from the conventional "W"-shaped Kevlar drill bits due to its very sharp cutting edges and two spurs

Advantages

  • The tip geometry only generates minimal cutting forces
  • Due to this, a very good quality at the entry and exit area of the drill can be achieved

Notes

  • Other dimensions and configurations on request

Table- and picture caption ...

Ø D
[mm] 		L2
[mm] 		Ø d
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

2 17 6,0 50 2 R 187001
|
2.1 17 6,0 50 2 R 187002
|
2.2 17 6,0 50 2 R 187003
|
2.3 17 6,0 50 2 R 187004
|
2.4 17 6,0 50 2 R 187005
|
2.5 20 6,0 50 2 R 187006
|
2.6 20 6,0 50 2 R 187007
|
2.7 20 6,0 50 2 R 187008
|
2.8 20 6,0 50 2 R 187009
|
2.9 20 6,0 50 2 R 187010
|
Show 1 to 10 of 96 entries
