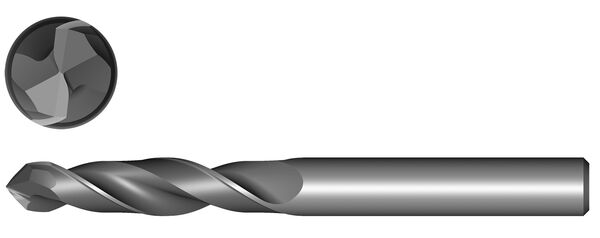

CD020 Drill bit 90/30 VHW

Product

Drawing

  • Solid Tungsten Carbide
  • MEC

Article

Description

Machine / Application

  • Can be used on CNC and gantry machines or ADUs (automatic drilling units)
  • Very well suited for für UD laminates for example CFRP

Design

  • Optimized, faceted tip geometry for chip-free through holes
  • Tip angle 90°/30°

Advantages

  • Long edge life due to reduced cutting forces and micrograin carbide
  • Optionally available with adapted CVD diamond coating

Notes

  • Intermediate dimensions available continuously from diameter 2.0 mm to 12.0 mm

Table- and picture caption ...

Ø D
[mm] 		L2
[mm] 		Ø d
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

4 22 4,0 55 2 R 187816
|
6 30 6,0 70 2 R 187818
|
8 35 8,0 80 2 R 187825
|
10 40 10 90 2 R 187827
|
Show 1 to 4 of 4 entries
