Edge Jointing Cutters HW - SCM-Stefani
Product

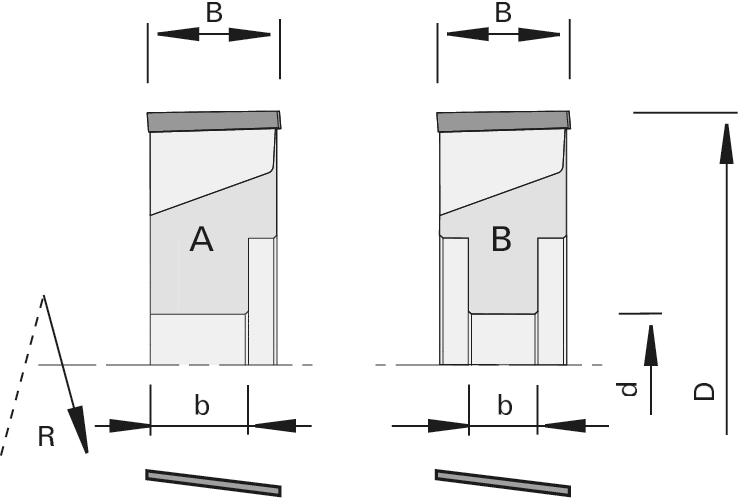

Drawing
-
- Tungsten Carbide [HW]
- MEC
Article
Description
Machine / Application
- edge banding machines SCM-Stefani with ED-System
- for jointing and flush-cutting of solid wood, veneer and plastic edge bands
Design
- with shear angle
- n max = 18,000 min-1
Advantages
Notes
- sense of rotation according to VDMA 8849
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
DKN
[mm] |
Shear∡
[°] |
Type |
nmax
[min-1] |
L/R | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||||
| 70 | 20 | 14.5 | 16 | 4 | 5x2,3 | 12 | A | 18,000 | L | SCM-Stefani-RSK | 182985 | ||
| 70 | 20 | 14.5 | 16 | 4 | 5x2,3 | 12 | A | 18,000 | R | SCM-Stefani-RSK | 182986 | ||
| 75 | 20 | 10.5 | 16 | 4 | 5x2,3 | 12 | A | 18,000 | L | SCM-Stefani-RSP | 182989 | ||
| 75 | 20 | 10.5 | 16 | 4 | 5x2,3 | 12 | A | 18,000 | R | SCM-Stefani-RSP | 182990 | ||
| 75 | 30 | 11 | 16 | 4 | 5x2,3 | 12 | B | 18,000 | L | SCM-Stefani-RSP | 182991 | ||
| 75 | 30 | 11 | 16 | 4 | 5x2,3 | 12 | B | 18,000 | R | SCM-Stefani-RSP | 182992 | ||
| 80 | 20 | 11 | 16 | 4 | 5x2,3 | 12 | B | 18,000 | L | SCM-Stefani-R | 182617 | ||
| 80 | 20 | 11 | 16 | 4 | 5x2,3 | 12 | B | 18,000 | R | SCM-Stefani-R | 182618 | ||
