Edge Jointing Cutters DP - KDT

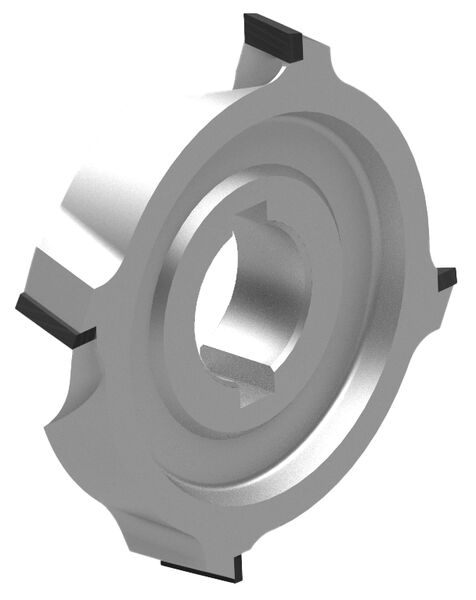

Product

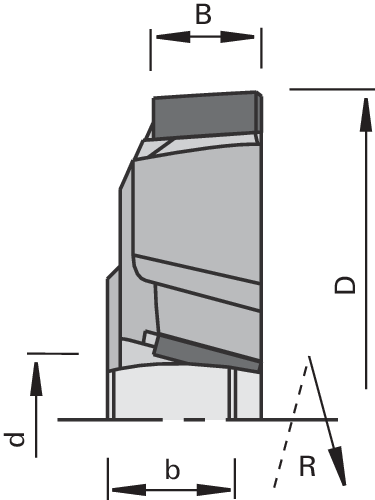

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • edge banding machines KDT
  • for jointing and flush-cutting of solid wood, veneer and plastic edge bands

Design

  • with shear angle
  • n max = 24,000 min-1

Advantages

Notes

  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmax
[min-1] 		L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

56 8 10 16 4 5x2,3 24,000 L 80511661
|
56 8 10 16 4 5x2,3 24,000 R 80511662
|
