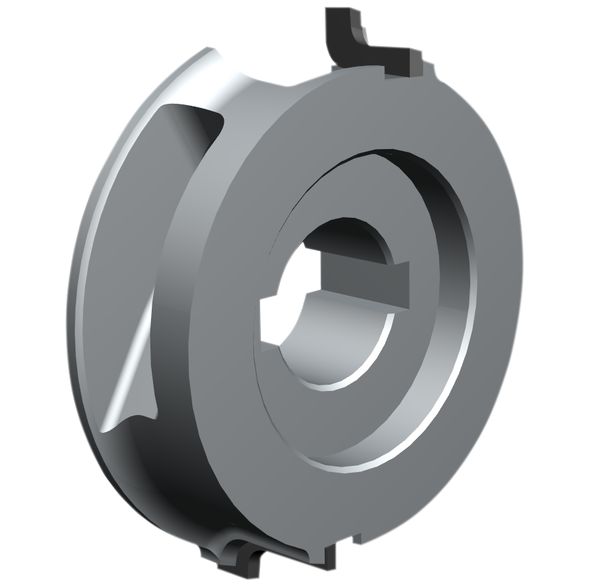

DIAMAX Edge Rounding Cutters DP - HOLZ-HER FR201 - AirStream-System

Product

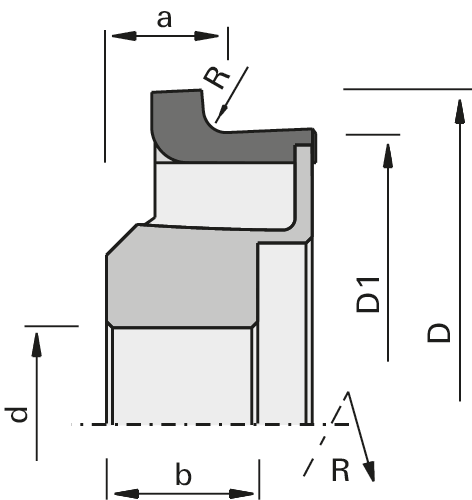

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • edge banding machines HOLZ-HER aggregate FR201 (1825M)
  • for rounding of solid wood, veneer and plastic edge bands

Design

  • AirStream-System
  • with shear angle
  • polished face and high-finish clearance angle
  • n max = 24,000 min-1

Advantages

  • considerably increased chip caption degree thanks to AirStream-System
  • less chips remain inside of the machine
  • no malfunctions due to chips
  • reduction of suction power
  • very low noise level

Notes

  • constant basic dimensions a and D1
  • sense of rotation according to VDMA 8849
  • not for resharpening

Table- and picture caption ...

R
[mm] 		Ø D
[mm] 		Ø D1
[mm] 		a
[mm] 		b
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmax
[min-1] 		L/R Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

1,0 57 50 10 12.5 16 2 5x2,3 24,000 L HOLZ-HER FR201 185430
|
1,0 57 50 10 12.5 16 2 5x2,3 24,000 R HOLZ-HER FR201 185431
|
1,3 57 50 10 12.5 16 2 5x2,3 24,000 L HOLZ-HER FR201 185424
|
1,3 57 50 10 12.5 16 2 5x2,3 24,000 R HOLZ-HER FR201 185425
|
2,0 57 50 10 12.5 16 2 5x2,3 24,000 L HOLZ-HER FR201 185426
|
2,0 57 50 10 12.5 16 2 5x2,3 24,000 R HOLZ-HER FR201 185427
|
3,0 57 50 10 12.5 16 2 5x2,3 24,000 L HOLZ-HER FR201 185428
|
3,0 57 50 10 12.5 16 2 5x2,3 24,000 R HOLZ-HER FR201 185429
|
