Edge Chamfering Cutterheads HW

Product

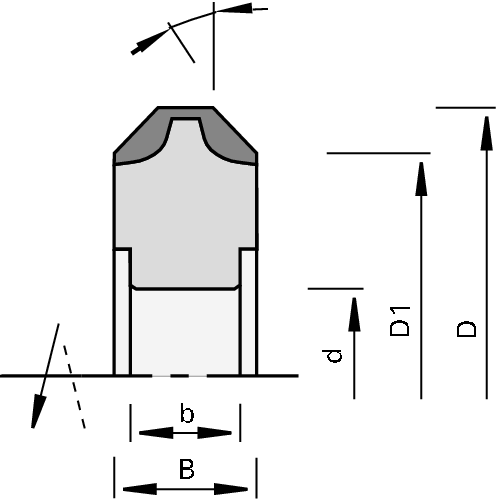

Drawing

Tungsten Carbide [HW]
MEC

current tab: current tab: Article

Article

Machine / Application

edge banding machines
for chamfering of solid wood, veneer and plastic edge bands

Design

cutting edges parallel to cutter axis
cutting material: HW HL Board 05
n max = 18,000 min-1

Advantages

Notes

for clockwise and counter-clockwise rotation
sense of rotation according to VDMA 8849

Showentries

	Chamfer∡ [°]	Ø D [mm]	Ø D1 [mm]	B [mm]	b [mm]	Ø d [mm]	Z	DKN [mm]	nmax [min-1]	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	45	57	50	12	12	16	2	5x2,3	18,000	HOLZ-HER	171189	\|
	45	62	50	16	10	16	2	5x2,3	18,000	HOLZ-HER	173379	\|
	45	73	61	16	11	16	3	5x2,3	18,000	Homag	173380	\|
	45	82	70	16	11	16	4	5x2,3	18,000	Brandt	172728	\|
	45	73	61	16	11	20	3	6x3,5	18,000	HOLZ-HER	173381	\|
	45	82	70	16	11	20	4	6x3,5	18,000	IMA, Wilmsmeyer	172729	\|

Show 1 to 6 of 6 entries
