Selection via tool type

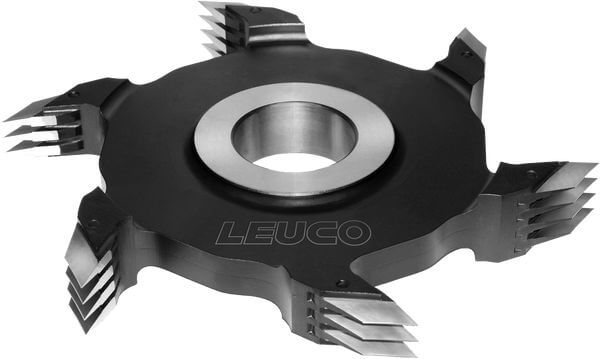

Finger Joint Cutters 10/11

Product

Drawing

  • High Speed Steel [HS]
  • MEC

Article

Description

Machine / Application

  • finger joint machines
  • machines with cross-cutting device
  • For longitudinal joints in soft, hard and exotic woods, with a finger length of 10 mm

Design

  • Finger length of 10 mm
  • HS suitable for soft woods
  • HS Solid 34 suitable for knotty soft woods
  • HW suitable for hard and exotic woods

Advantages

  • HS Solid 34: high bending strength, compared to HS finger joint cutters the edge life is 1.5 - 2 times as long
  • topcoat 104: the edge life is 2 times as long compared to HS finger joint cutters

Notes

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z Partition
[mm]

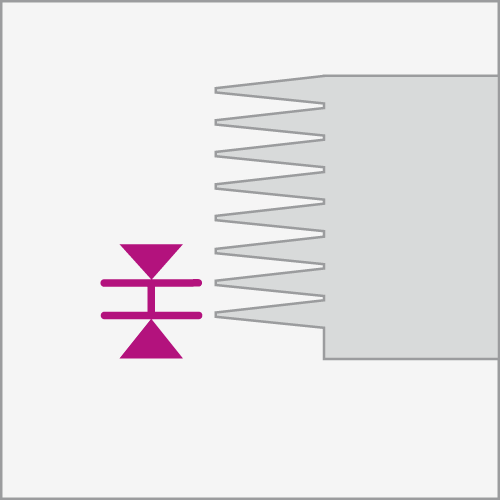

Finger joint length
[mm]

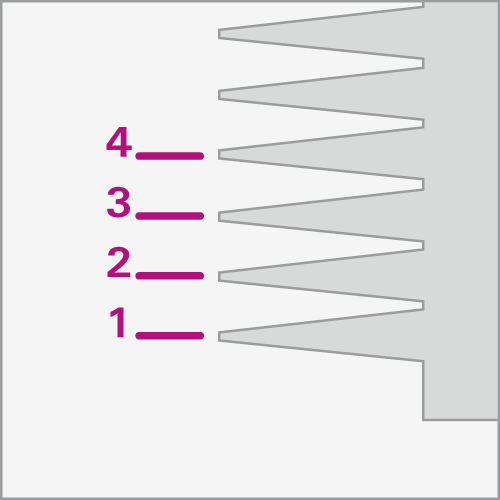

Number of finger joints
[pc.]
nmax
[min-1]
Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

160 28,6 26.6 50 2+2 3.8 10/11 7 8,000 HS 187389
|
160 28,6 26.6 50 2+2 3.8 10/11 7 8,000 HS, topcoat 104 187391
|
160 28,6 26.6 50 2+2 3.8 10/11 7 8,000 HS Solid 34 187388
|
160 28,6 26.6 50 2+2 3.8 10/11 7 8,000 HS Solid 34, topcoat 104 187390
|
160 28,6 26.6 50 2+2 3.8 10/11 7 8,000 HW 187392
|
160 32,4 30.4 50 2+2 3.8 10/11 8 8,000 HS 187397
|
160 32,4 30.4 50 2+2 3.8 10/11 8 8,000 HS, topcoat 104 187395
|
160 32,4 30.4 50 2+2 3.8 10/11 8 8,000 HS Solid 34 187396
|
160 32,4 30.4 50 2+2 3.8 10/11 8 8,000 HS Solid 34, topcoat 104 187394
|
160 28,6 26.6 50 3+3 3.8 10/11 7 8,000 HS 187399
|
160 28,6 26.6 50 3+3 3.8 10/11 7 8,000 HS, topcoat 104 187401
|
160 28,6 26.6 50 3+3 3.8 10/11 7 8,000 HS Solid 34 187402
|
160 28,6 26.6 50 3+3 3.8 10/11 7 8,000 HS Solid 34, topcoat 104 187400
|
250 28,6 26.6 50 3+3 3.8 10/11 7 6,000 HS 187406
|
250 28,6 26.6 50 3+3 3.8 10/11 7 6,000 HS, topcoat 104 187408
|
250 28,6 26.6 50 3+3 3.8 10/11 7 6,000 HS Solid 34 187407
|
250 28,6 26.6 50 3+3 3.8 10/11 7 6,000 HS Solid 34, topcoat 104 187409
|
250 28,6 26.6 50 3+3 3.8 10/11 7 6,000 HW 187405
|
