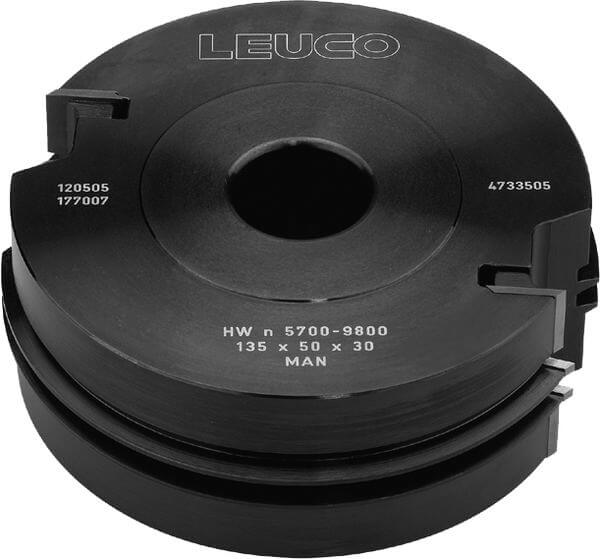

Glue Joint Profile Cutterheads HW

Product

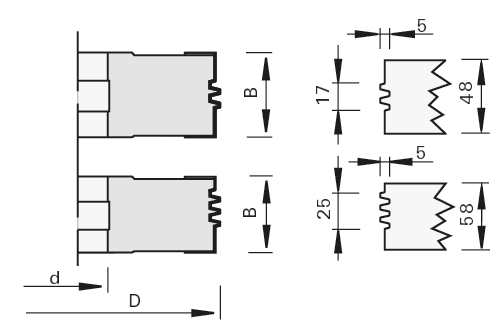

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • molders
  • table shapers
  • for cutting of edge glue joints in solid woods

Design

  • cutting edges parallel to cutter axis
  • n = 5,700 - 9,800 min-1

Advantages

  • continuous high profile accuracy thanks to turnover knives

Notes

  • application against feed
  • fit of joints can be defined by moving the knives sideways by means of dials (see spare parts)
  • when delivered, tool is set to 0.3 mm joint play

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Ø dmax
[mm] 		Z T
[mm] 		nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

135 50 30 50 2 5,0 5700-9800 177007
|
135 60 30 50 2 5,0 5700-9800 177008
|
