Selection via tool type

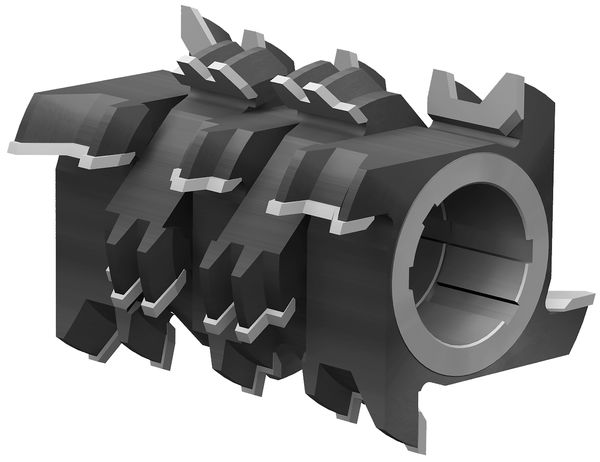

HW Counter Profile Cutter set

Product

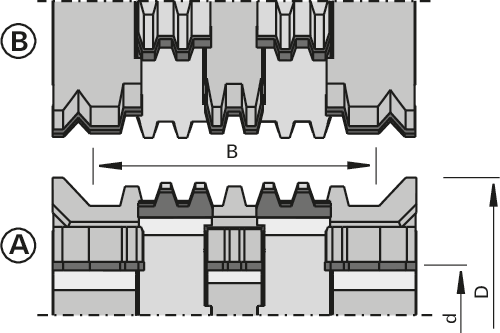

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • molders
  • For manufacturing of longitudinal joints on block piles

Design

  • Body made from steel
  • Symmetrical design

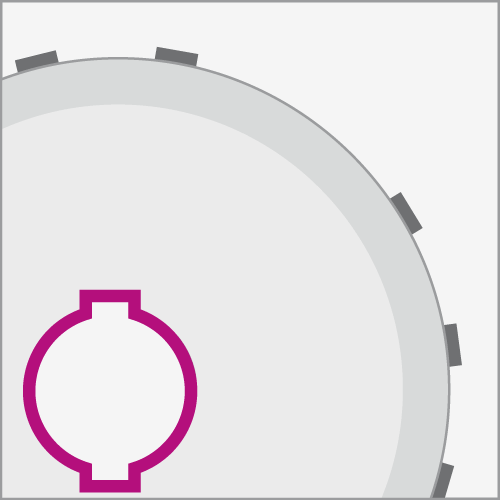

  • Double keyway for twist locking

Advantages

  • Maximum possible precision thanks to plane parallelism of all parts

Notes

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

190 220 239 80 5x4 12x3,3 8,000 192657
|
190 220 239 80 5x4 12x3,3 8,000 192658
|
