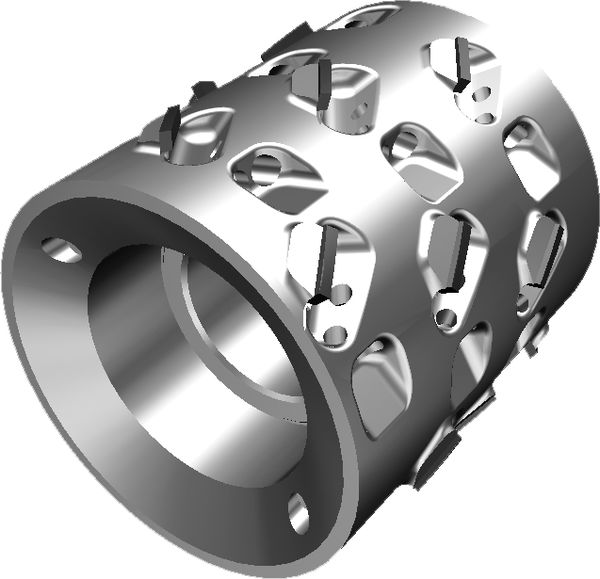

DIAMAX Jointing Cutters DP - HOLZ-HER - AirStream-System

through feed machines HOLZ-HER aggregate 1801 / 1802 / 1804
for extremely noise-reduced, chip-free jointing of melamine-, paper-, HPL-laminated, foiled and veneered panels

Showentries

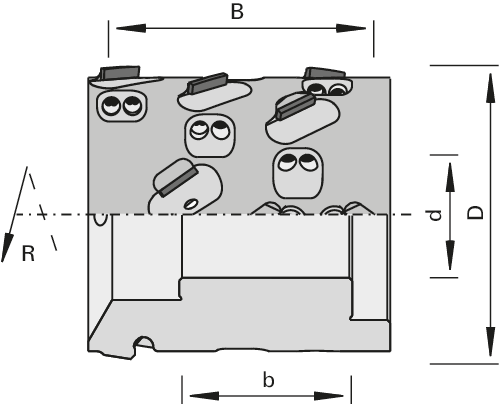

	Ø D [mm]	B [mm]	b [mm]	Ø d [mm]	Z	DKN [mm]	nmax [min-1]	L/R	Machine/Type	Remarks	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	70	48	41	30	2+2	8x3,3	18,000	L	HOLZ-HER aggregate 1801 / 1802	asymmetrical	185800	\|
	70	48	41	30	2+2	8x3,3	18,000	R	HOLZ-HER aggregate 1801 / 1802	asymmetrical	185801	\|
	70	64	41	30	2+2	8x3,3	18,000	L	HOLZ-HER aggregate 1801 / 1802	asymmetrical	185802	\|
	70	64	41	30	2+2	8x3,3	18,000	R	HOLZ-HER aggregate 1801 / 1802	asymmetrical	185803	\|
	70	48	41	30	3+3	8x3,3	18,000	L	HOLZ-HER aggregate 1801 / 1802	asymmetrical	185806	\|
	70	48	41	30	3+3	8x3,3	18,000	R	HOLZ-HER aggregate 1801 / 1802	asymmetrical	185807	\|
	70	64	41	30	3+3	8x3,3	18,000	L	HOLZ-HER aggregate 1801 / 1802	asymmetrical	185808	\|
	70	64	41	30	3+3	8x3,3	18,000	R	HOLZ-HER aggregate 1801 / 1802	asymmetrical	185809	\|
	100	63	40	30	3+3	8x3,3	18,500	L	HOLZ-HER aggregate 1804	symmetrical	186937	\|
	100	63	40	30	3+3	8x3,3	18,500	R	HOLZ-HER aggregate 1804	symmetrical	186936	\|

Show 1 to 10 of 10 entries
