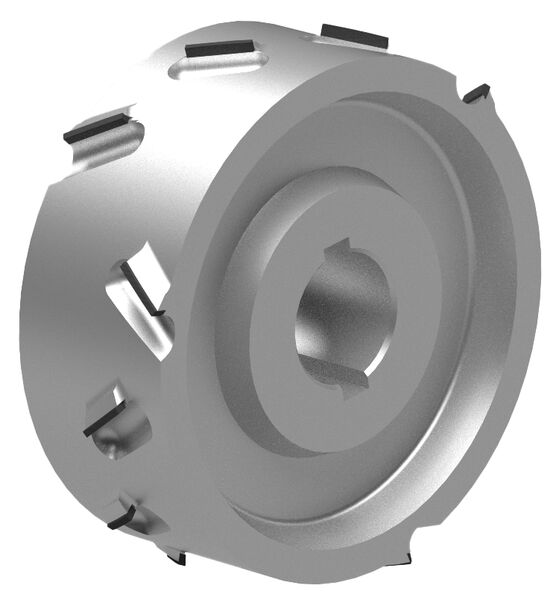

DIAECO Jointing Cutter DP - Nanxing / KDT
Product

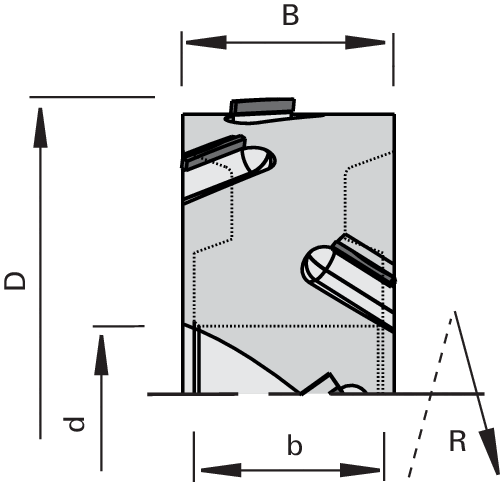

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- through feed machines
- edge banding machines
zum ausrissfreien Fügen von Massivholz- und Holzwerkstoffplatten beschichtet und unbeschichtet
Design
- shear angle 35°
- resharpening area 1 mm
Advantages
Notes
- sense of rotation according to VDMA 8849
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
DKN
[mm] |
nmax
[min-1] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 125 | 43 | 40 | 30 | 3+3 | 8x3,3 | 15,000 | L | 80511656 | ||
| 125 | 43 | 40 | 30 | 3+3 | 8x3,3 | 15,000 | R | 80511657 | ||
