Selection via tool type

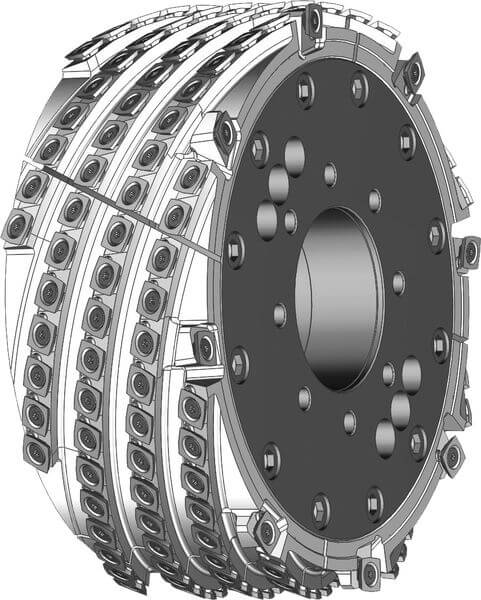

p-System Profile Cutters HW

Product

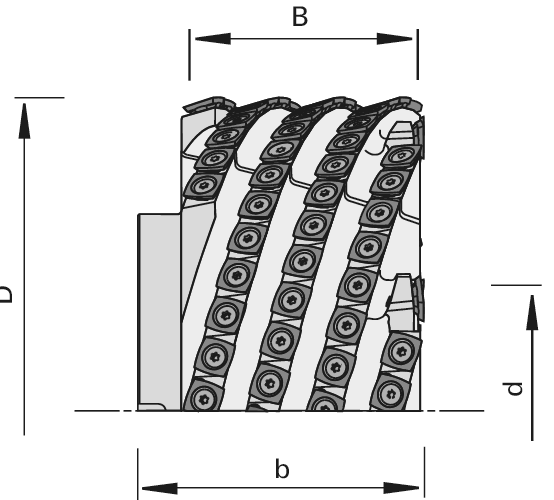

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • machine
  • EWD FR15, FR16
  • Linck VPF340
  • for milling of corners / profiling

Design

  • one part and segmented
  • turnover knives can be used on all four sides
  • extremely scoring cut
  • cutting material: HW HL Solid 20

Advantages

  • no chippings due to knots
  • considerable improvement of surface quality compared to the existing chipping knives
  • small chips suitable for pellet production
  • extremely long edge lives (up to 8 million running meters)

Notes

  • chips are not suitable for paper industry
  • feed rate per tooth fz = 2-8 mm

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z Shear∡
[°] 		L/R Machine/Type Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

360 139,5 164 110 8+8 70 R EWD vertical axis top PSE1
|
360 139,5 164 110 8+8 70 L EWD vertical axis bottom PSE2
|
402 139 164 110 8+8 70 R EWD vertical axis top PSE11
|
402 139 164 110 8+8 70 L EWD vertical axis bottom PSE12
|
402 121 139 120/200 8+8 70 R Linck vertical axis top PSE13
|
402 121 139 120/200 8+8 70 L Linck vertical axis bottom PSE14
|
360 64 164 60 4+4 70 R EWD horizontal axis right PSE3
|
360 64 164 60 4+4 70 L EWD horizontal axis left PSE4
|
360 64 164 60 5+5 70 R EWD horizontal axis right PSE5
|
360 64 164 60 5+5 70 L EWD horizontal axis left PSE6
|
Show 1 to 10 of 14 entries
