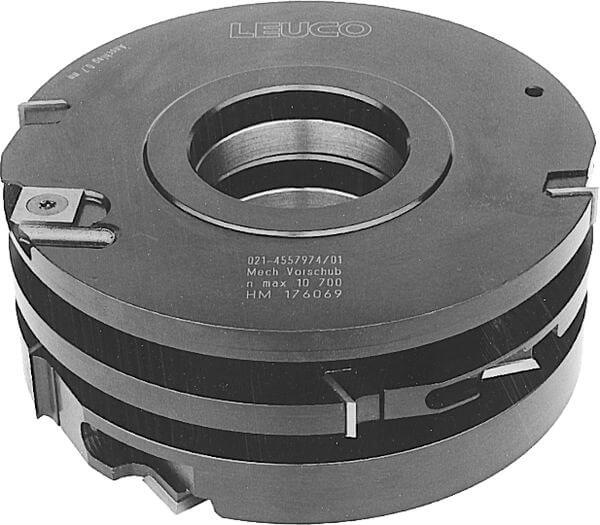

Groove Bed Cutterheads HW

Product

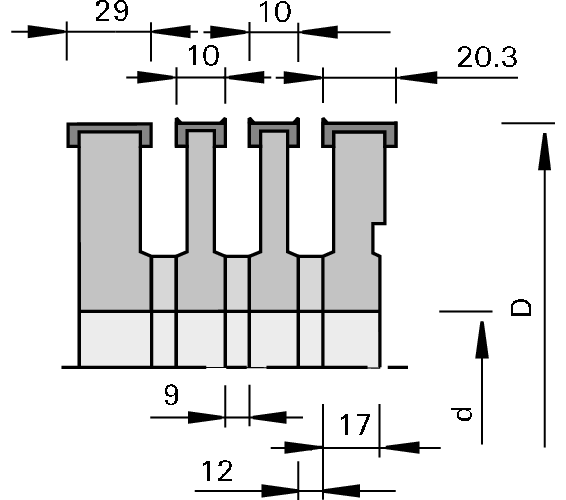

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • molders with groove bed section Weinig
  • for cutting of guide grooves in solid woods

Design

  • n max = 10,700 min-1
  • single tools with spur
  • Ident-No. 180536, 186498 without spur

Advantages

Notes

  • application with the grain
  • attention: replacement parts for old cutterhead sets: cutterhead width = 9 mm can be replaced with new cutterhead width = 10 mm when spacer width = 10 mm is replaced with spacer width = 9 mm cutterhead width = 10.5 mm can be replaced with cutterhead width = 10 mm

Table- and picture caption ...

Ø D
[mm]
B
[mm]
Ø d
[mm]
Z nmax
[min-1]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

140 10 40 2+2 10,700 176066
|
140 20,3 40 2+2 10,700 176067
|
140 39,5 40 2 10,700 186498
|
140 29 40 2 10,700 180536
|
140 10 50 2+2 10,700 176069
|
140 20,3 50 2+2 10,700 176070
|
