Selection via tool type

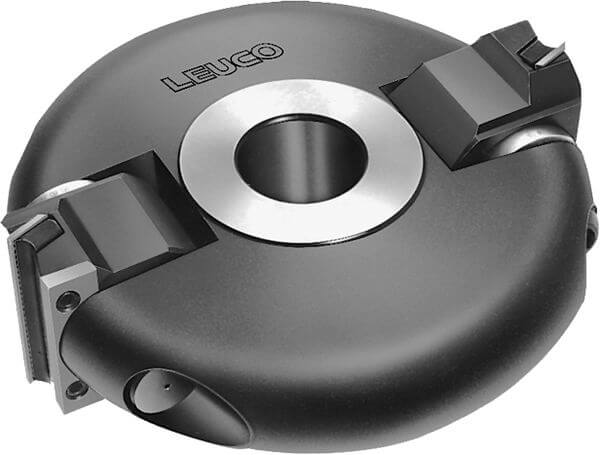

Swivel Cutterheads HW

Product

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • table shapers
  • for chamfering, jointing and rabbeting with adjustable chamfer angle in solid woods and in veneered and plastic-coated panels

Design

  • cutting edges parallel to cutter axis
  • cutting material: HW HL Board 05

Advantages

Notes

  • application against feed
  • rabbeting with additional spur
  • pivot range up to 60 degree
  • Ø 120 mm chamfer angle adjustable from 5 degree to 5 degree
  • Ø 150 mm chamfer angle adjustable from 1 degree to 1 degree

Table- and picture caption ...

Chamfer∡
[°] 		Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

60 120 40 30 2 6400-11000 179184
|
60 150 50 30 2 5200-9000 179185
|
60 150 50 40 2 5200-9000 180903
|
60 160 50 50 2 4800-8000 180904
|
