Selection via tool type

PowerDiaProfiler DP

Product

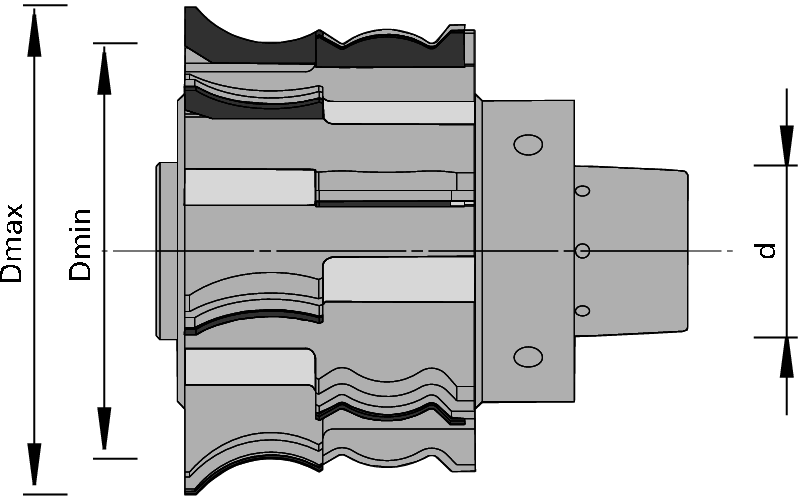

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • molding automats with HSK-interface
  • for profiling of MDF, hard and exotic woods

Design

  • topline (polished knife face and precise cutting edge)

Advantages

  • highest concentricity
  • feed speed and workpiece surface like in the case of jointed HW-tools

Notes

  • optimal cutting speed 80 - 100m/s
  • profiles according to customer specifications
  • price on request
  • n max = depending on L2 and weight (see chart)

Table- and picture caption ...

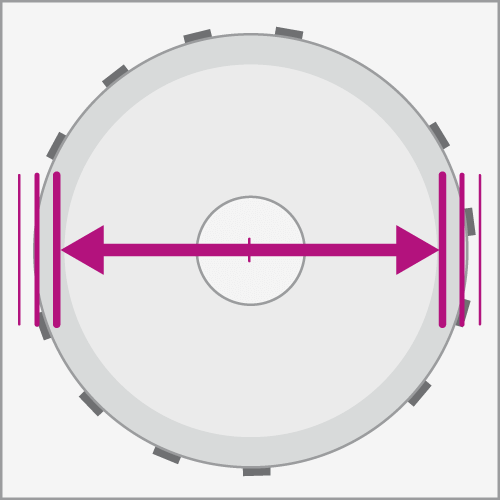

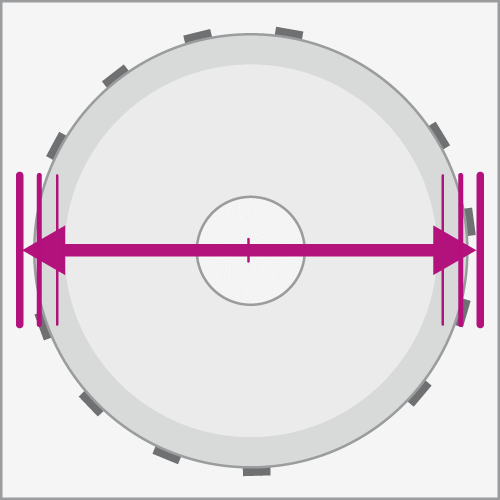

Ø Dmax
[mm] 		∅ Dmin
[mm] 		Z nmax
[min-1] 		Recommended feed
[m/min] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

180 100 2 12,000 33 A1
|
180 100 3 12,000 50 A2
|
180 100 4 12,000 66 A3
|
180 100 5 12,000 83 A4
|
180 100 6 12,000 100 A5
|
180 100 7 12,000 117 A6
|
180 100 8 12,000 133 A7
|
Show 1 to 7 of 7 entries
