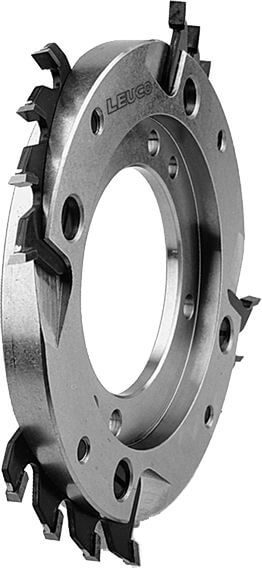

Folding Segment Extensions HW - Circular Cut

extendable to 54 mm
for subsequent extension of existing folding hoggers Ø 200 mm and Ø 250 mm
the diameters of existing folding hoggers and folding extensions must match
the extension assemblies consist of a body with installed HW segments, spacer and screws
sense of rotation see drawing

	Ø D [mm]	B [mm]	Ø d [mm]	Z	Z segments	L/R	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	250	36-54	80	6x4	6x4	L	164011	\|
	250	36-54	80	6x4	6x4	R	164012	\|
