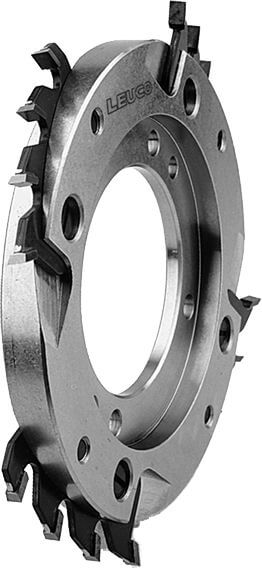

Segment Extensions HW - Circular Cut

Product

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • for hogging of large offal widths and veneer overhang

Design

Advantages

Notes

  • extendable to 72 mm
  • for subsequent extension of existing folding hoggers Ø 200 mm and Ø 250 mm
  • the extensions consist of a body with installed HW segments, spacer and screws

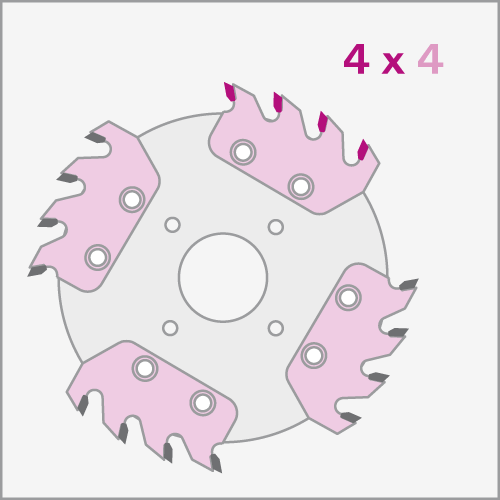

  • sense of rotation see drawing

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z Z segments L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

200 18-36 80 4x4 4x4 L 006406
|
200 18-36 80 4x4 4x4 R 006407
|
200 18-54 80 8x4 8x4 L 006408
|
200 18-54 80 8x4 8x4 R 006409
|
250 18-36 80 6x4 6x4 L 058390
|
250 18-36 80 6x4 6x4 R 058391
|
250 18-54 80 12 x 4 12x4 L 058392
|
250 18-54 80 12x4 12x4 R 058393
|
250 36-54 80 6x4 6x4 L 058396
|
250 36-54 80 6x4 6x4 R 058397
|
250 36-72 80 12x4 12x4 L 058398
|
250 36-72 80 12x4 12x4 R 058399
|
250 54-72 80 6x4 6x4 L 058402
|
250 54-72 80 6x4 6x4 R 058403
|
