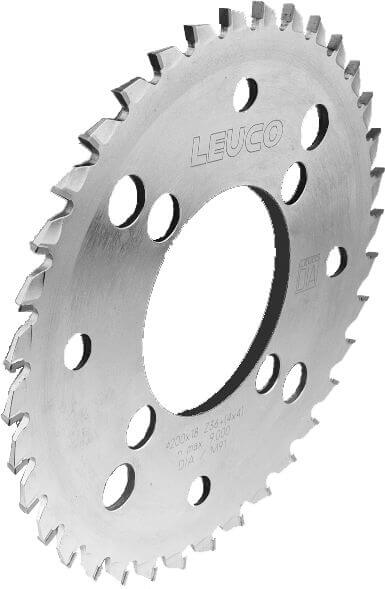

Sizing Saw Blades DP for Segment Hoggers "ES-FA"

Product

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • double end tenoners
  • edge trimming machines
  • for chip-free sizing of raw, melamine-, paper-, HPL-laminated, foiled and veneered panels

Design

  • tooth configuration: top bevel with chamfer and face shear "ES-FA"
  • saw blade with equal tooth pitch
  • n max = 9,000 min-1 with Ø 200 mm
  • n max = 7,200 min-1 with Ø 250 mm
  • resharpenable area 4 mm; sides of teeth can be resharpened

Advantages

Notes

  • application against feed
  • for scoring/hogging (RZ) and double hogging (DZ) process
  • for combination with LEUCO Segment Hoggers: Ø 80 on Segment Hoggers with standard bushing / Ø 100 on Segment Hoggers for s-System
  • the specified feed rates are based on n = 6,000 min-1
  • sense of rotation see drawing

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z L/R nmax
[min-1] 		Feed DZ
[m/min] 		Feed RZ
[m/min] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

200 4,0 2.8 80 24 L 9,000 25 15 170397
|
200 4,0 2.8 80 24 R 9,000 25 15 170398
|
200 4,0 2.8 80 28 L 9,000 30 17,5 170399
|
200 4,0 2.8 80 28 R 9,000 30 17,5 170400
|
200 4,0 2.8 80 32 L 9,000 32,5 20 170401
|
200 4,0 2.8 80 32 R 9,000 32,5 20 170402
|
200 4,0 2.8 80 36 L 9,000 35 22,5 170403
|
200 4,0 2.8 80 36 R 9,000 35 22,5 170404
|
200 4,0 2.8 80 40 L 9,000 40 25 170405
|
200 4,0 2.8 80 40 R 9,000 40 25 170406
|
200 4,0 2.8 80 44 L 9,000 45 27,5 170407
|
200 4,0 2.8 80 44 R 9,000 45 27,5 170408
|
200 4,0 2.8 80 48 L 9,000 50 30 170409
|
200 4,0 2.8 80 48 R 9,000 50 30 170410
|
250 4,0 2.8 80 24 L 7,200 25 15 170495
|
250 4,0 2.8 80 24 R 7,200 25 15 170496
|
250 4,0 2.8 80 30 L 7,200 32,5 20 170497
|
250 4,0 2.8 80 30 R 7,200 32,5 20 170498
|
250 4,0 2.8 80 36 L 7,200 40 25 170499
|
250 4,0 2.8 80 36 R 7,200 40 25 170500
|
250 4,0 2.8 80 42 L 7,200 45 27,5 170501
|
250 4,0 2.8 80 42 R 7,200 45 27,5 170502
|
250 4,0 2.8 80 48 L 7,200 50 30 170503
|
250 4,0 2.8 80 48 R 7,200 50 30 170504
|
250 4,0 2.8 80 54 L 7,200 55 35 170505
|
250 4,0 2.8 80 54 R 7,200 55 35 170506
|
250 4,0 2.8 80 60 L 7,200 60 40 170507
|
250 4,0 2.8 80 60 R 7,200 60 40 170508
|
250 4,0 2.8 80 66 L 7,200 65 45 170509
|
250 4,0 2.8 80 66 R 7,200 65 45 170510
|
250 4,0 2.8 100 24 L 7,200 25 15 170621
|
250 4,0 2.8 100 24 R 7,200 25 15 170622
|
250 4,0 2.8 100 30 L 7,200 32,5 20 170623
|
250 4,0 2.8 100 30 R 7,200 32,5 20 170624
|
250 4,0 2.8 100 36 L 7,200 40 25 170625
|
250 4,0 2.8 100 36 R 7,200 40 25 170626
|
250 4,0 2.8 100 42 L 7,200 45 27,5 170627
|
250 4,0 2.8 100 42 R 7,200 45 27,5 170628
|
250 4,0 2.8 100 48 L 7,200 50 30 170629
|
250 4,0 2.8 100 48 R 7,200 50 30 170630
|
250 4,0 2.8 100 54 L 7,200 55 35 170631
|
250 4,0 2.8 100 54 R 7,200 55 35 170632
|
250 4,0 2.8 100 60 L 7,200 60 40 170633
|
250 4,0 2.8 100 60 R 7,200 60 40 170634
|
250 4,0 2.8 100 66 L 7,200 65 45 170635
|
250 4,0 2.8 100 66 R 7,200 65 45 170636
|
250 4,0 2.8 100 72 L 7,200 70 50 170637
|
250 4,0 2.8 100 72 R 7,200 70 50 170638
|
