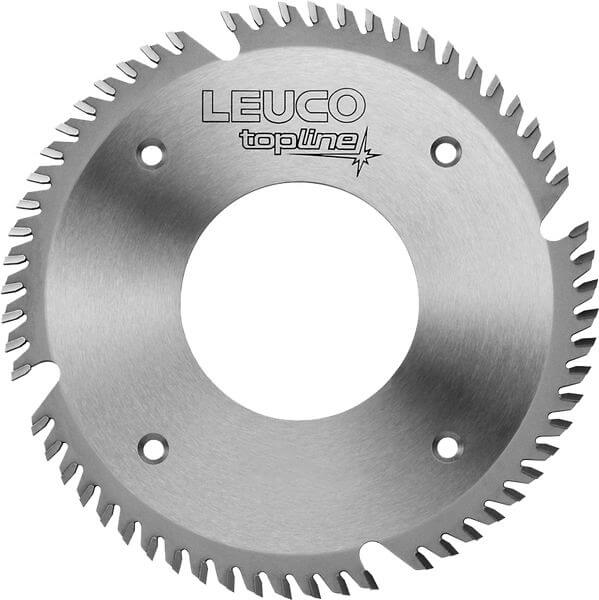

Sizing Saw Blades HW for Segment Hoggers "F"

Product

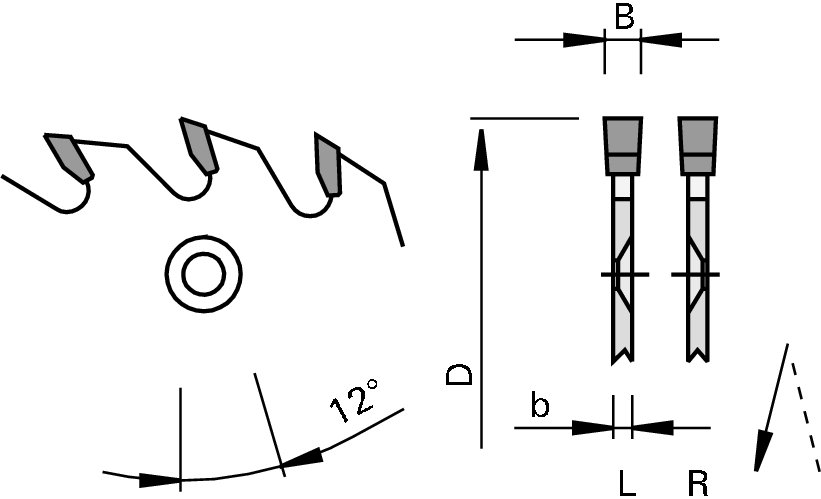

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • double end tenoners
  • edge trimming machines
  • for sizing cuts in laminated and raw panels

Design

  • tooth configuration: flat "F"
  • cutting material: HW HL Board 06

Advantages

Notes

  • bore diameter 100 mm for s-System hogger
  • sense of rotation see drawing

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z Free slots
[pc.] 		NL Hook angle
[°] 		L/R LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

200 4,0 2.8 80 40 4 4/6,5/140 12 L HL Board 06 188226
|
200 4,0 2.8 80 40 4 4/6,5/140 12 R HL Board 06 188227
|
200 4,0 2.8 80 60 4 4/6,5/140 12 L HL Board 06 188228
|
200 4,0 2.8 80 60 4 4/6,5/140 12 R HL Board 06 188229
|
250 4,0 2.8 80 48 6 6/6,5/200 12 L HL Board 06 188230
|
250 4,0 2.8 80 48 6 6/6,5/200 12 R HL Board 06 188231
|
250 4,0 2.8 100 48 6 6/6,5/200 12 L HL Board 06 188238
|
250 4,0 2.8 100 48 6 6/6,5/200 12 R HL Board 06 188239
|
250 4,0 2.8 80 72 6 6/6,5/200 12 L HL Board 06 188236
|
250 4,0 2.8 80 72 6 6/6,5/200 12 R HL Board 06 188237
|
250 4,0 2.8 100 72 6 6/6,5/200 L HL Board 06 188240
|
250 4,0 2.8 100 72 6 6/6,5/200 R HL Board 06 188241
|
