Tool Adapters HSK 63F - Modula
Product

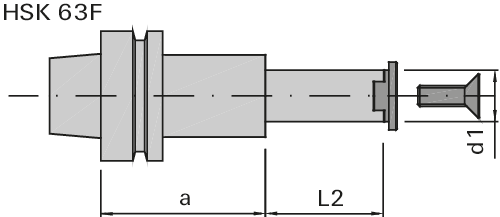

Drawing
Article
Description
Machine / Application
- for mounting of Modula sets or single cutters
Design
- machine adapter HSK 63F
- for clockwise and counter-clockwise rotation
- anti-twist protection by means of spline
- incl. clamping lid
Advantages
Notes
- incl. retaining bolt according to DIN 69871A
- the clamping length is determined as required; please always state requested dimensions L2 and A
- retention bores for toolboy is possible at a surcharge
- ident. no. 198968 is a blank
|
Ø d1min
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
a
[mm] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||
| 25 | 25-87 | HSK 63F | 107 | 50 | 199720 | ||
| 25 | 25-71 | HSK 63F | 151 | 80 | 198967 | ||
| 25 | 25-71 | HSK 63F | 171 | 100 | 199719 | ||
| 30 | 25-80 | HSK 63F | 160 | 36 | 198968 | ||
