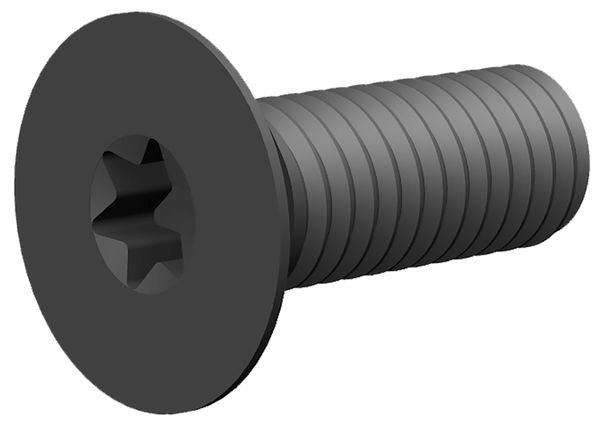

Countersunk Screws - with Torx

	Dimension [mm]	MOQ [pc.]	PU [pc.]	Remarks	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	M2,5x5,5-12.9 T8 D=Ø3,45	10	10		167486	\|
	M3x7,3 T8 D=Ø4	10	10		166502	\|
	M3,5x5,5 T15 D=Ø5,4	10	10		162649	\|
	M3,5x6 T15 D=Ø5,4	10	10		162648	\|
	M4x0,5x3,2 T9 D=Ø6	10	10		163925	\|
	M4x0,5x4,2 T9 D=Ø6	10	10		165908	\|
	M4x0,5x5,3 T9 D=Ø6	10	10		170202	\|
	M5x6 T20 D=Ø9,3	10	10		176199	\|
	M5x6,8 T15 D=Ø9,4	10	10		180839	\|
	M5x8 T20 D=Ø10	10	10		164005	\|
	M5x9 T15	10	10	for t3-System	80492032	\|
	M5x9 T20 D=Ø9,3	10	10		827277	\|
	M5x10 T20 D=Ø10	10	10	for attaching the saw blade without flange	171236	\|
	M5x10,8 T15 D=Ø9,4	10	10		180840	\|
	M5x12 T20 D=Ø9,3	10	10		166709	\|
	M5x13 T20	10	10	with collar 6,0 mm	80306012	\|
	M5x13,5 T20 D=Ø10	10	10	with collar 6,3 mm	171238	\|
	M5x13,5 T20	10	10		185080	\|
	M5x15,5 T20 D=Ø8,5	10	10	with collar 6,0 mm	182112	\|
	M5x16 T20 D=Ø10	10	10	for attaching the flange	164839	\|
	M6x10 T20 D=Ø8,8	10	10		181244	\|
