Gang-Rip Saw Blades HW "WS"

staggering the types (A-C-A etc.) on the shaft creates a cut division that puts less pressure on the machine

Showentries

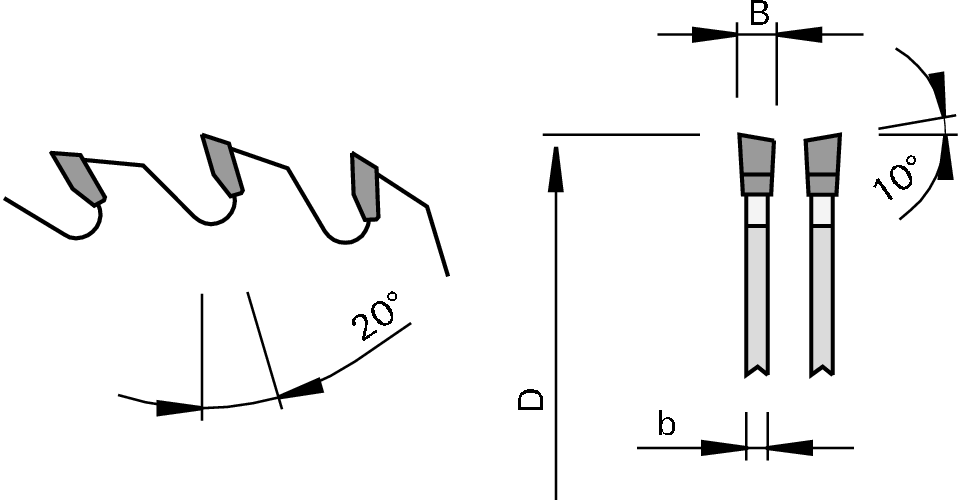

	Ø D [mm]	B [mm]	b [mm]	Ø d [mm]	Z	DKN [mm]	NL	Hook angle [°]	Corner∡ [°]	Tooth geometry	LEUCODUR	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	190	3,4	2.2	30	20			20	10	WS	HL Board 20		188049	\|
	200	3,2	2.2	60	34			20	10	WS	HL Board 06	Paul	188038	\|
	200	3,2	2.2	60	42			20	10	WS	HL Board 06	Paul	188041	\|
	210	3,2	2.2	100	34	12,5x4		20	10	WS	HL Board 06		189283	\|

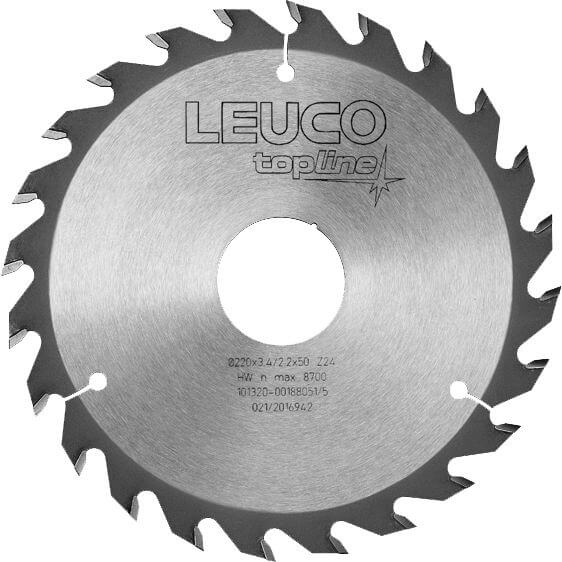

	220	3,4	2.2	50	24			20	10	WS	HL Board 20		188051	\|
	300	3,2	2.2	80	28	18,5x5	6/5,5/91 + 4/6,6/95 + 2/13/100	20	10	WS	HL Board 20		188054	\|
	300	3,2	2.2	70	36	20x5		20	10	WS	HL Board 20		189285	\|
	300	3,2	2.2	80	36	18,5x5	6/5,5/91 + 4/6,6/95 + 2/13/100	20	10	WS	HL Board 20		189286	\|
	300	3,2	2.2	70	48	20x5		20	10	WS	HL Board 20		189287	\|

Show 1 to 9 of 9 entries
