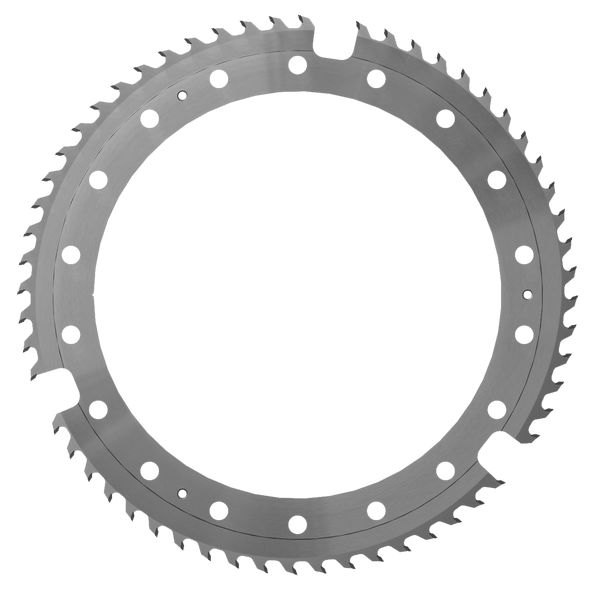

Hogger Rings HW "F"
Product
Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- chipping line rough and fine cut
- for longitudinal cuts in wet and dry soft woods
Design
- tooth configuration: flat "F"
- cutting material: HW HL Solid 15 or HL Board 20
Advantages
- extremely high bending strength and hardness of the teeth
Notes
- the saw blade is optimized according to the LEUCO company standards as well as according to the customers specifications and machine parameters after consultation with the technical engineering
- Ident-No. is only for orientation
|
Ø D
[mm] |
B
[mm] |
b
[mm] |

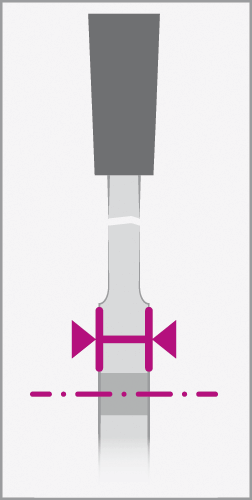

b1
[mm] |

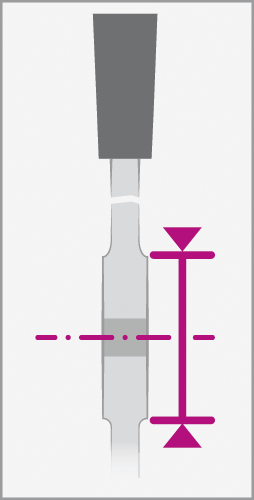

Ø D1
[mm] |
Ø d
[mm] |
Z |
Free slots
[pc.] |
Hook angle
[°] |

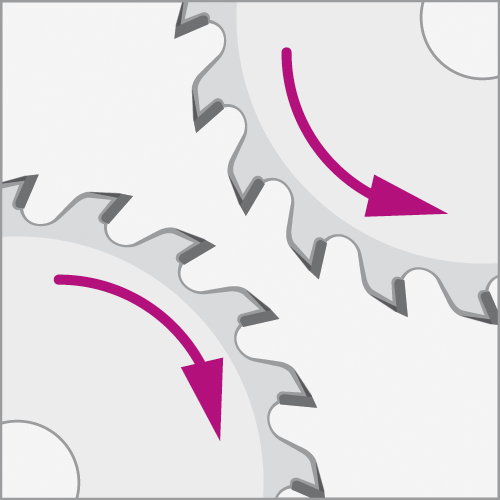

L/R | Tooth geometry | LEUCODUR | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||||
| 560 | 5,0 | 3.6 | 5.8 | 485 | 405 | 48-4 | 4 | 20 | L | F | HL Board 10 | 80317242 | ||
| 560 | 5,0 | 3.6 | 5.8 | 485 | 405 | 48-4 | 4 | 20 | R | F | HL Board 10 | 80317243 | ||
| 605 | 4,4 | 3.2 | 6 | 540 | 440 | 48 | 20 | L | F | HL Solid 15 | 80294208 | |||
| 605 | 4,4 | 3.2 | 6 | 540 | 440 | 48 | 20 | R | F | HL Solid 15 | 80294209 | |||
| 620 | 5,0 | 3.8 | 5 | 540 | 450 | 60-3 | 3 | 15 | L | F | HL Board 20 | 80206577 | ||
| 620 | 5,0 | 3.8 | 5 | 540 | 450 | 60-3 | 3 | 15 | R | F | HL Board 20 | 80206581 | ||
| 630 | 4,4 | 3.2 | 6 | 539 | 440 | 48-3 | 3 | 20 | L | F | HL Solid 15 | 80274257 | ||
| 630 | 4,4 | 3.2 | 6 | 539 | 440 | 48-3 | 3 | 20 | R | F | HL Solid 15 | 80274262 | ||
