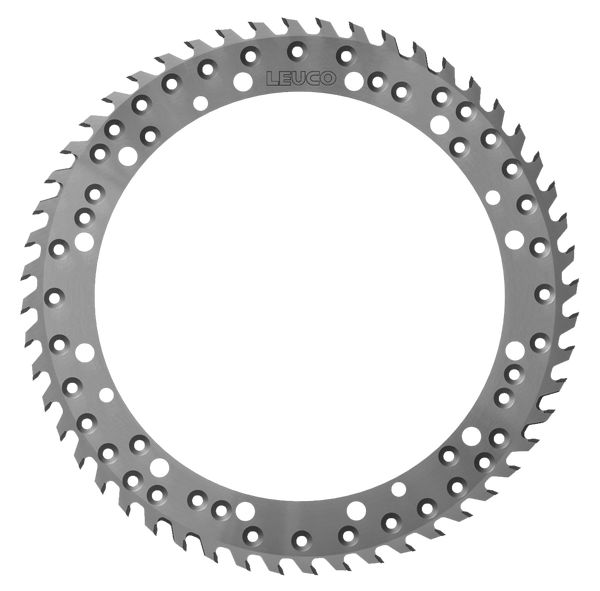

Hogger Rings HW "F" - Linck
Product

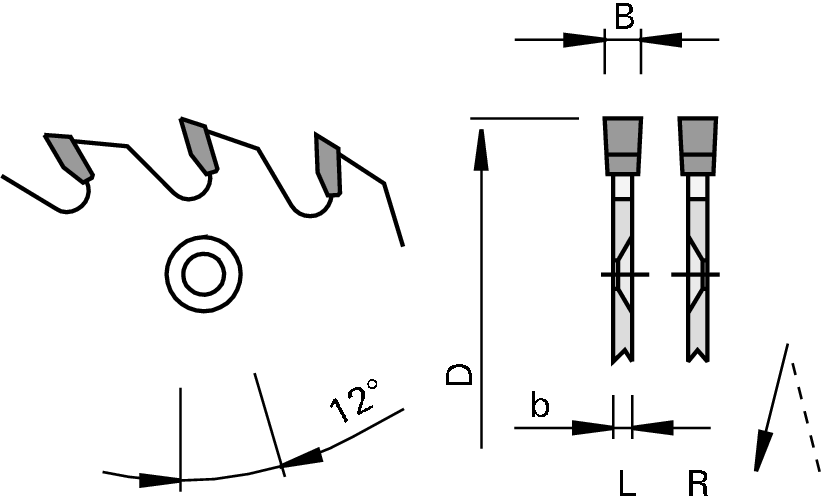

Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- chipping line rough and fine cut
- for longitudinal cuts in wet and dry soft woods
Design
- tooth configuration: flat "F"
- cutting material: HW HL Solid 15 or HL Board 20
Advantages
- extremely high bending strength and hardness of the teeth
Notes
- the saw blade is optimized according to the LEUCO company standards as well as according to the customers specifications and machine parameters after consultation with the technical engineering
- Ident-No. is only for orientation
|
Ø D
[mm] |
B
[mm] |
b
[mm] |

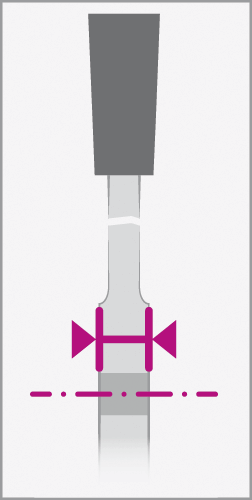

b1
[mm] |

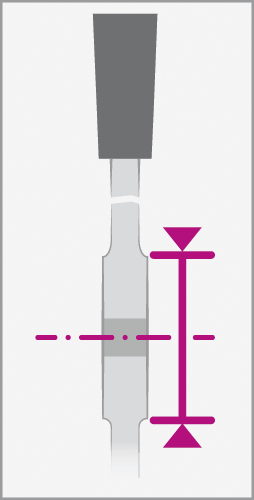

Ø D1
[mm] |
Ø d
[mm] |
Z |

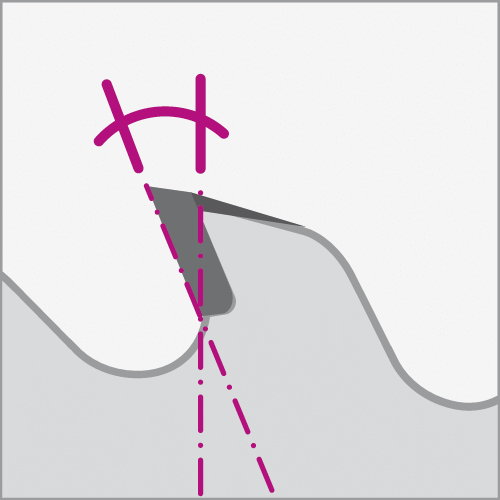

Hook angle
[°] |

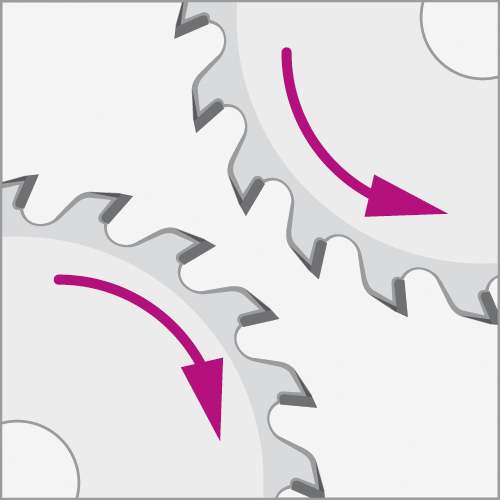

L/R | Tooth geometry | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||||
| 576 | 4,5 | 3.5 | 6 | 531 | 422 | 52 | 20 | L | F | HL Board 20 | Linck V25 | 80347850 | ||
| 576 | 4,5 | 3.5 | 6 | 531 | 422 | 52 | 20 | R | F | HL Board 20 | Linck V25 | 80347849 | ||
| 724 | 4,5 | 3.5 | 6 | 684 | 586 | 64 | 20 | L | F | HL Board 20 | Linck VM45 | 80371095 | ||
| 724 | 4,5 | 3.5 | 6 | 684 | 586 | 64 | 20 | R | F | HL Board 20 | Linck VM45 | 80371094 | ||
