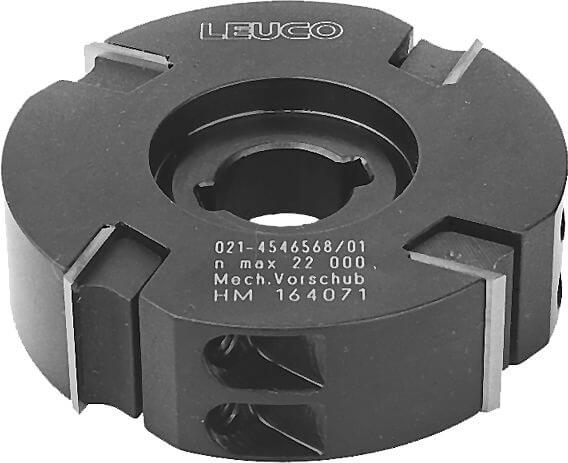

Edge Jointing Cutterheads HW
Product

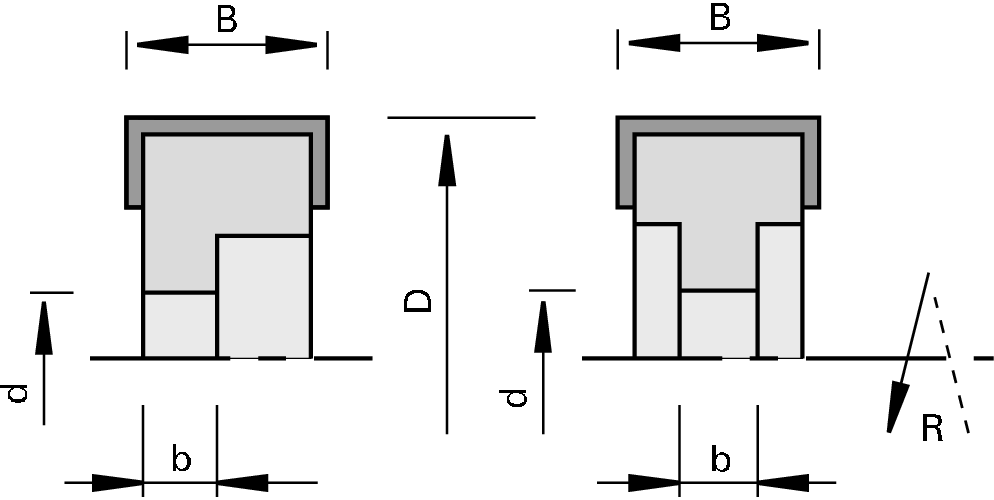

Drawing
-
- Tungsten Carbide [HW]
- MEC
Article
Description
Machine / Application
- edge banding machines
- for jointing and flush-cutting of solid wood, veneer and plastic edge bands
Design
- cutting edges parallel to cutter axis
- cutting material: HW HL Board 05
- n max = 18,000 min-1
Advantages
Notes
- sense of rotation according to VDMA 8849
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
DKN
[mm] |
nmax
[min-1] |
L/R | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 50 | 12 | 10 | 16 | 4 | 5x2,3 | 18,000 | N | Sudhoff, EBM, Ney | 167258 | ||
| 50 | 12 | 10 | 16 | 2 | 5x2,3 | 18,000 | N | Homag, Homburg | 164066 | ||
| 50 | 15 | 10 | 16 | 4 | 5x2,3 | 18,000 | N | EBM | 179139 | ||
| 50 | 15 | 10 | 16 | 2 | 5x2,3 | 18,000 | N | IMA, Raimann | 164067 | ||
| 61 | 12 | 10 | 16 | 3 | 5x2,3 | 18,000 | N | Homag | 167899 | ||
| 61 | 20 | 11 | 16 | 3 | 5x2,3 | 18,000 | N | Homag | 167900 | ||
| 70 | 12 | 10 | 16 | 6 | 5x2,3 | 18,000 | N | Brandt, Homag | 164073 | ||
| 70 | 12 | 10 | 16 | 4 | 5x2,3 | 18,000 | N | Brandt, Homag | 164068 | ||
| 70 | 20 | 11 | 16 | 2 | 5x2,3 | 18,000 | N | Reich | 182077 | ||
| 70 | 20 | 11 | 16 | 4 | 5x2,3 | 18,000 | N | Homag, HOLZ-HER 1823, Biesse Akron 400 RS 502 | 164071 | ||
| 70 | 20 | 20 | 16 | 4 | 5x2,3 | 18,000 | N | Ott | 164069 | ||
| 70 | 20 | 12.5 | 20 | 6 | 2/6x3,5 | 18,000 | L | IMA, SCM-IDM, Brandt, Homag | 164134 | ||
| 70 | 20 | 12.5 | 20 | 6 | 2/6x3,5 | 18,000 | R | IMA, SCM-IDM | 164080 | ||
| 70 | 20 | 12.5 | 20 | 4 | 6x3,5 | 18,000 | L | IMA, SCM-IDM, Brandt, Homag | 164133 | ||
| 70 | 20 | 12.5 | 20 | 4 | 6x3,5 | 18,000 | R | Brandt, Homag | 164079 | ||
| 70 | 20 | 11 | 20 | 4 | 6x3,5 | 18,000 | N | HOLZ-HER | 164070 | ||
| 80 | 40 | 25 | 30 | 4 | 8x3,3 | 18,000 | N | HOLZ-HER | 164072 | ||
