Door leaf set HW

Product

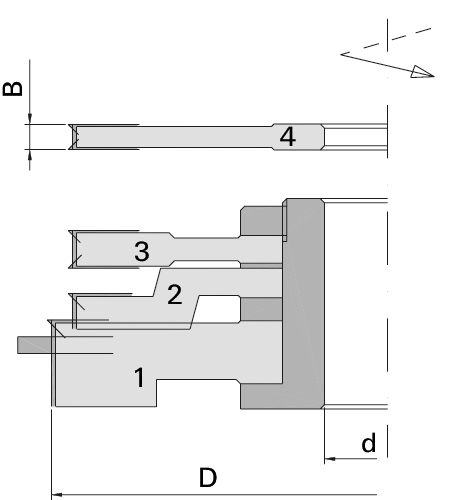

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • molders
  • for manufacturing door leaves and cladding in solid woods and wood-based materials

Design

Advantages

  • no tool change needed since different profiles are manufactured with the same cutter set

Notes

  • Ident-No. 199399 with 887060 for complete processing
  • Ident-No. 199398 as construction set for Poly Rabbeting Cutterhead

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

150 30 2+2 Cutter 2/3 on clamping bushing 199398
|
150 30 2+2 Cutter 1/2/3 on clamping bushing 199399
|
150 6,0 30 4+4 Cutter 4 887060
|
150 9,0 30 4+4 Cutter 3 887059
|
