PolyProfiler- / EcoPro-Blanks HW - B=40 mm

Product

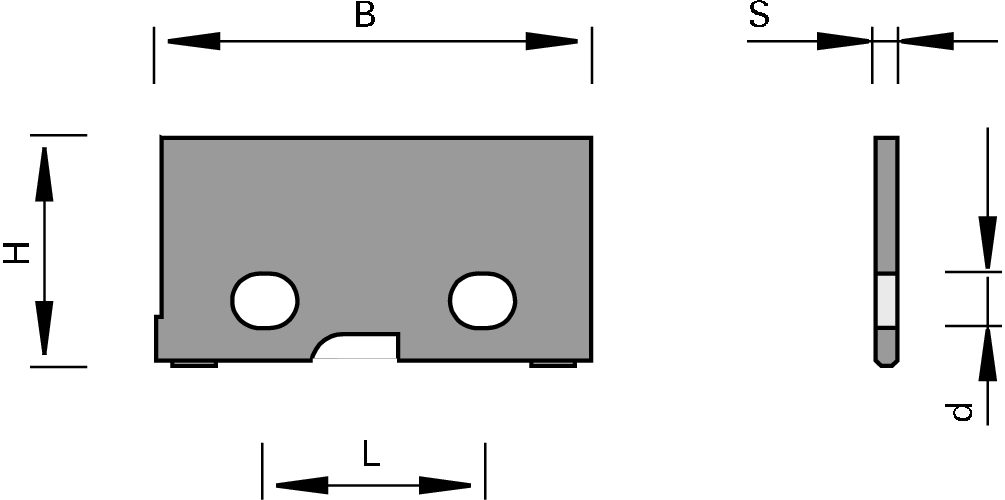

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • for use in LEUCO PolyProfiler and EcoPro cutterheads

Design

  • two-point seating surface and center stop for axial positioning
  • cutting material: HW
  • HL Board 06 for wood-based panels, plastics and hard woods

Advantages

  • precise positioning of the blanks for profiling and of the single-sided profile knife in the cutterhead

Notes

  • profile knife can be profiled per customer specifications

Table- and picture caption ...

B
[mm] 		H
[mm] 		S
[mm] 		Ø d
[mm] 		L
[mm] 		Tmax
[mm] 		Type LEUCODUR PU
[pc.] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

41 32.5 2 5,0 21,7-25,5 13 1 HL Board 06 10 180197
|
Show 1 to 1 of 1 entries
