Selection via tool type

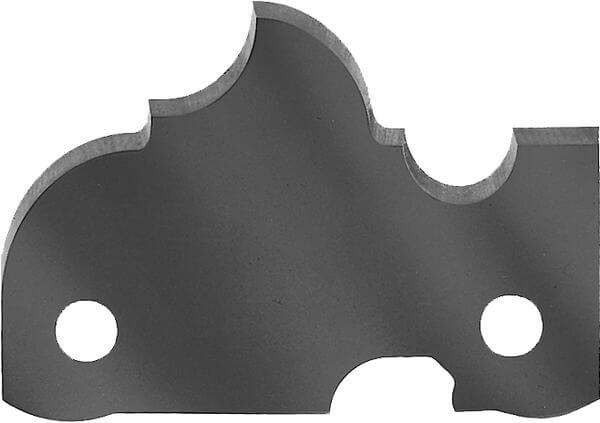

SuperProfiler Knives HW "Multi-Profile"

Product

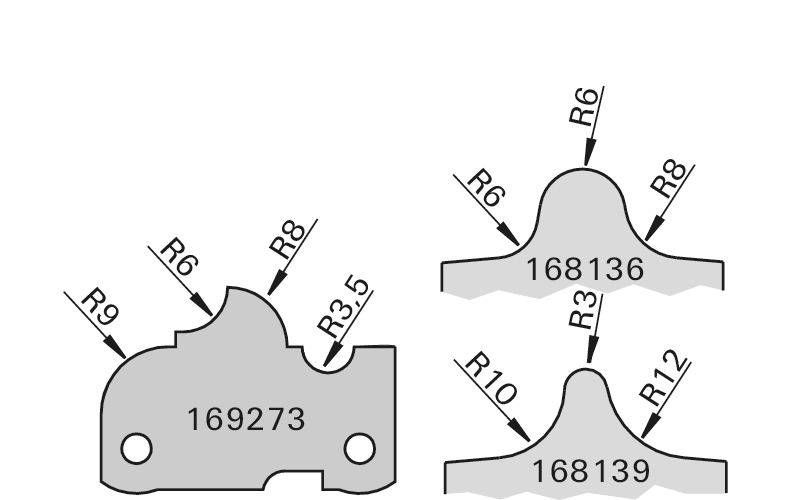

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • table shapers
  • for use in SuperProfiler cutterheads Ident-No. 167897 and 167894

Design

  • cutting material: HW
  • HL Board 06 for hard and soft woods

Advantages

Notes

  • for cutting of various profiles in one or more steps
  • profile examples see Technical Appendix

Table- and picture caption ...

B
[mm] 		H
[mm] 		S
[mm] 		LEUCODUR PU
[pc.] 		L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

39,5 28 2 HL Board 06 10 R 168136
|
40 28 2 HL Board 06 10 R 169273
|
39,5 28 2 HL Board 06 10 R 168139
|
