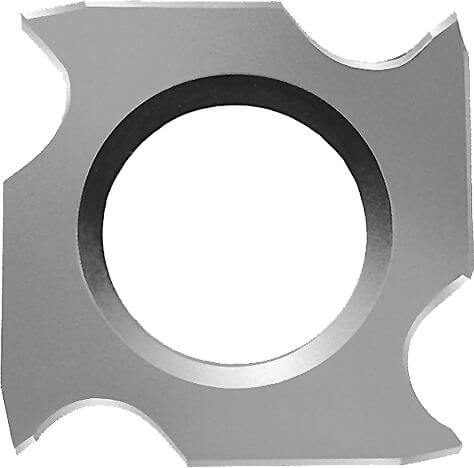

Grooving Turnover Knives HW with 4 cutting edges - grooving cutterheads
Product

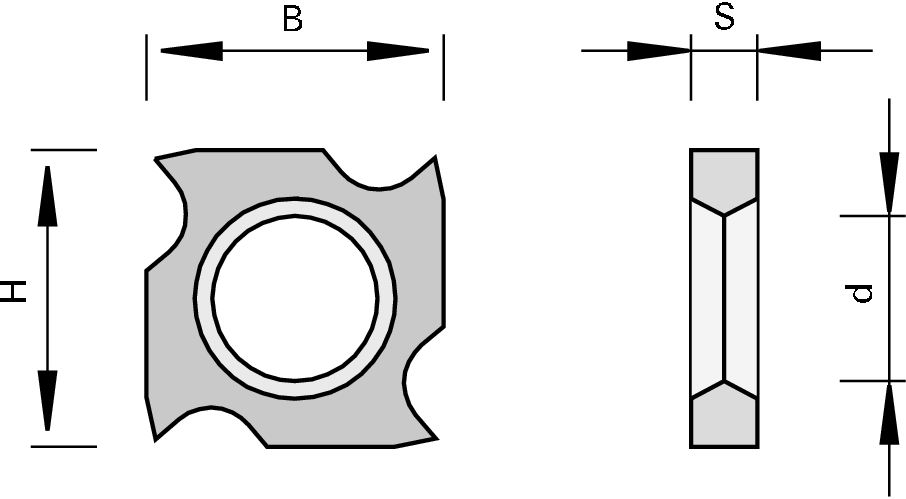

Drawing
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- for use in grooving cutterheads
Design
- cutting material: HW
- HL Solid 30 for wood-based panels, hard and soft woods
Advantages
Notes
- Ident-No. 163699 for groove width 4 mm
- Ident-No. 165906 for groove width 5 mm
- Ident-No. 169250 for groove width > 7 mm
- packing unit: 10 pieces
|
Dimension
[mm] |
B
[mm] |
H
[mm] |
S
[mm] |
Ø d
[mm] |
Type | LEUCODUR |
PU
[pc.] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 18x18x1,95 | 18 | 18 | 1.95 | 10 | 1 | HL Solid 30 | 10 | 163699 | ||
| 18x18x2,5 | 18 | 18 | 2.45 | 10 | 1 | HL Solid 30 | 10 | 165906 | ||
| 18x18x3,7 | 18 | 18 | 3.7 | 10 | 1 | HL Solid 30 | 10 | 169250 | ||
